FlatView®
Glass Flatness & Distortion Online Measurement System
Determination of flatness and optical distortion. For tempered/float glass lines
FlatView® is an online measurement system for flatness and optical distortion of flat tempered glass or float glass. Non-contact geometric optical surface measurement technology is adopted. By measuring the slope distribution of the glass surface, the surface shape is reconstructed based on the slopes. The assessment parameters are calculated according to the calculation methods for flatness and optical distortion specified in the standards. The evaluation indexes include PV, Optical Power (mD), 3D data distribution map and data distribution curve.
This instrument is suitable for measuring architectural glass.
Measurable Objects
Tempered Glass
Float Glass
Suitable for Measuring Architectural Glass
Functions
PV (Roll Wave), Optical Power (mD)

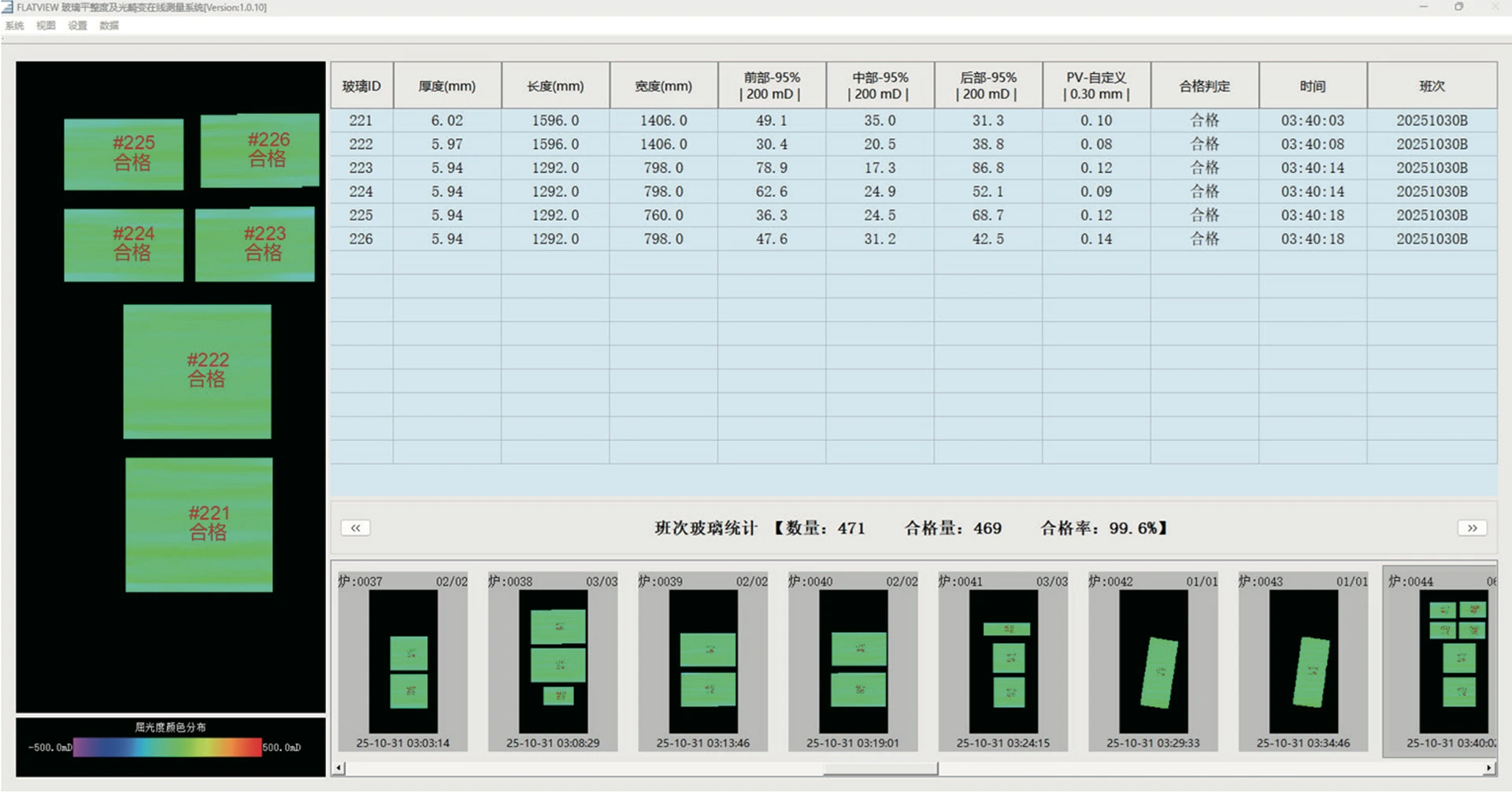

3D Data Distribution Map
Data Distribution Curve
Features
Patent Products
Independent intellectual property rights;
Online Scanning
Non-contact online scanning;
Anti-vibration Properties
The measurement data is stable, and it has anti-vibration properties for the glass surface;
Periodic Internal Calibration
Periodic internal calibration ensures high measurement accuracy;
Standard Calculation
Support a variety of standards in calculations;
High-Precision Measurement Reference Calibration
High-precision measurement reference calibration, with traceable measurement values.
Parameters
| Items | Configuration Specifications | Explanation | |||
|---|---|---|---|---|---|
| Production Line Specification | 2600 | 3250 | 3900 | Transverse maximum measuring range (mm) | |

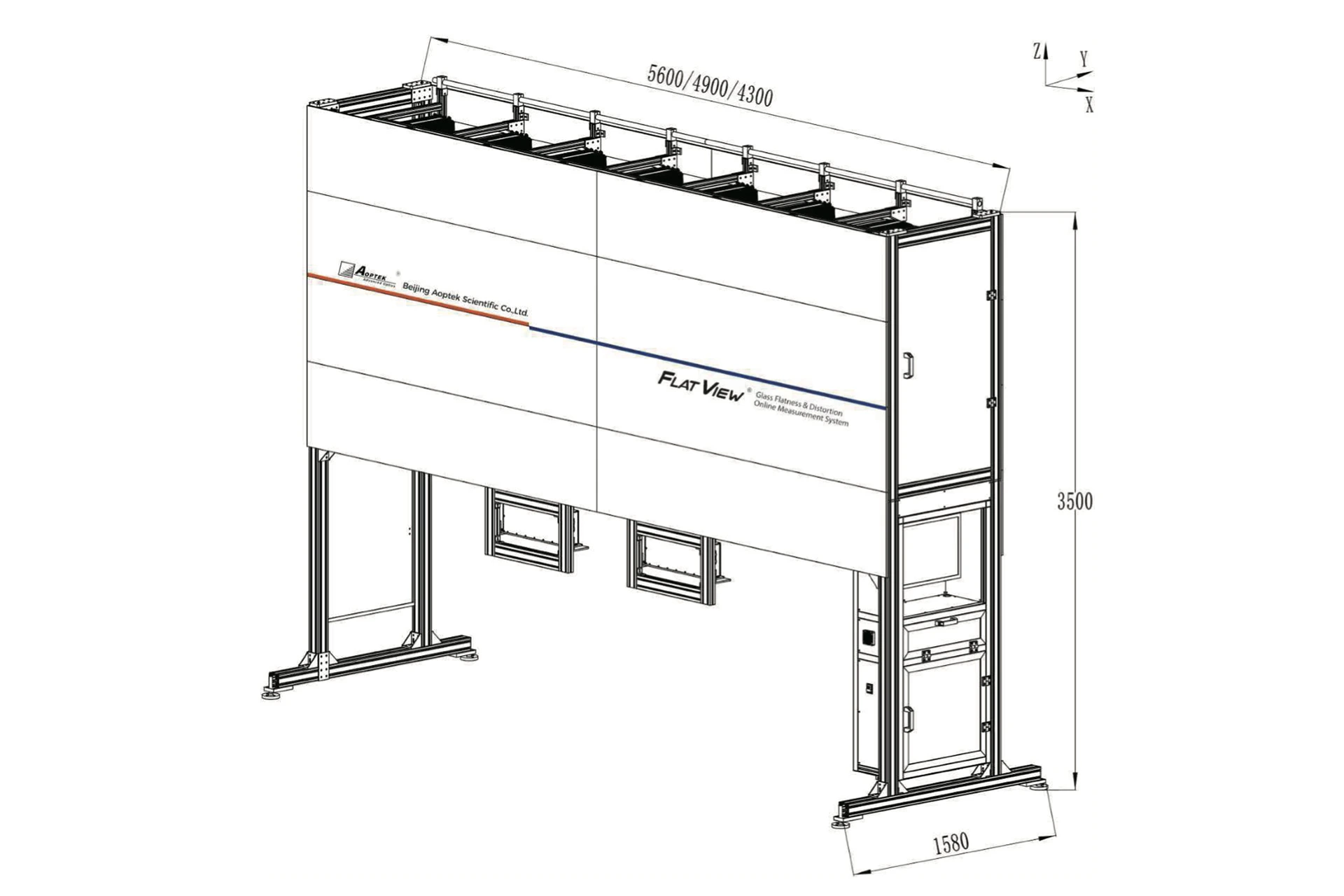

| Dimensions | Width (X) | 4300mm | 4900mm | 5600mm | Other sizes can be customized |
| Length (Y) | 900mm | Anchor 1580mm | |||
| Height (Z) | 3500mm | ||||
| Electrical Parameters | Power Input | AC 220V | |||
| Rated Power | 2kW | ||||
| Note: The x-axis direction corresponds to the width of the production line, the y-axis direction corresponds to the direction of glass transmission, and the z-axis direction corresponds to the height. | |||||
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
