TS580

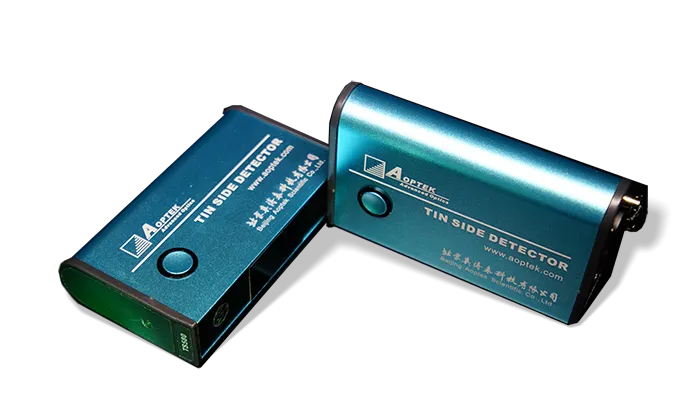

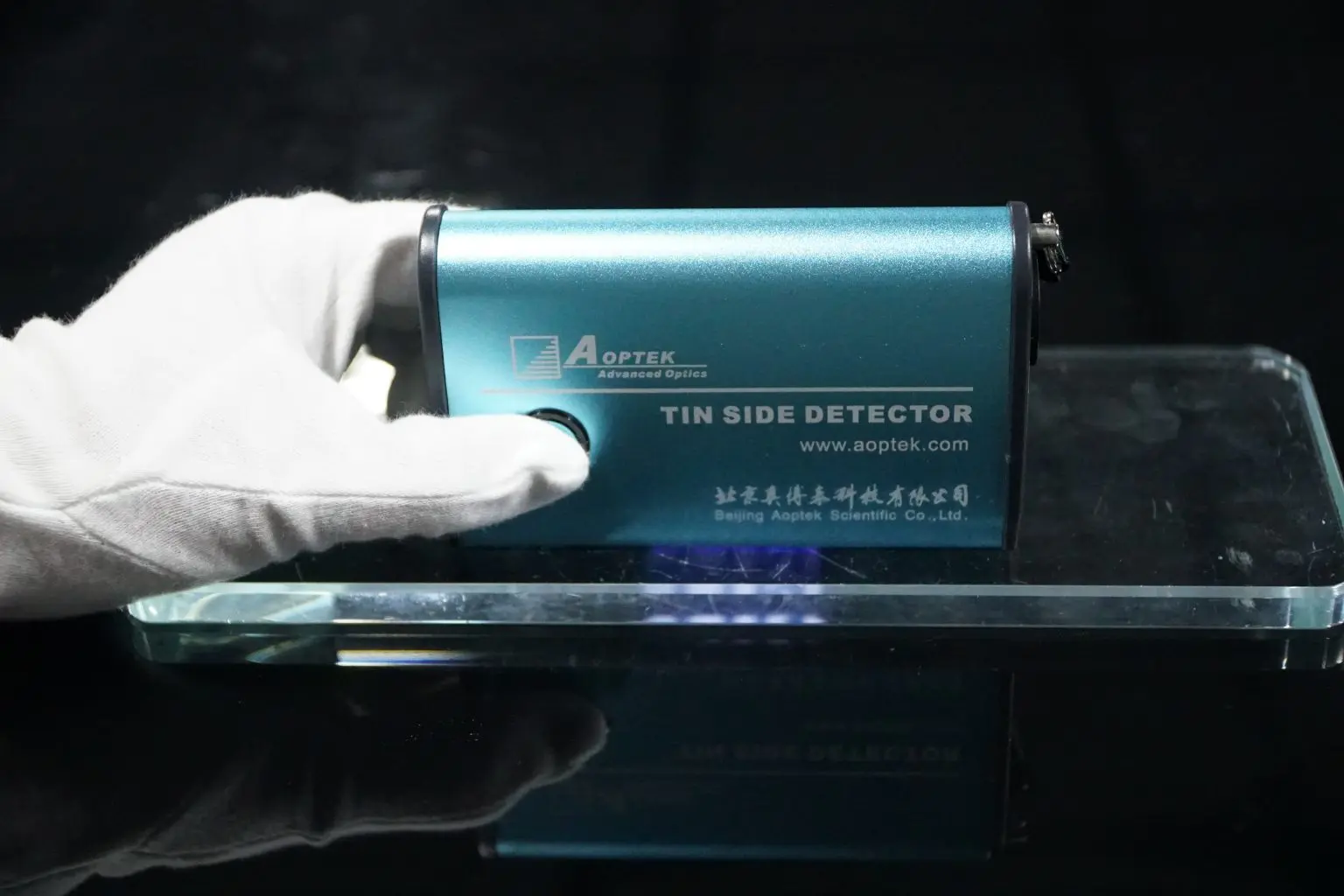

Tin Side Detector
Standard: CE, ROHS.

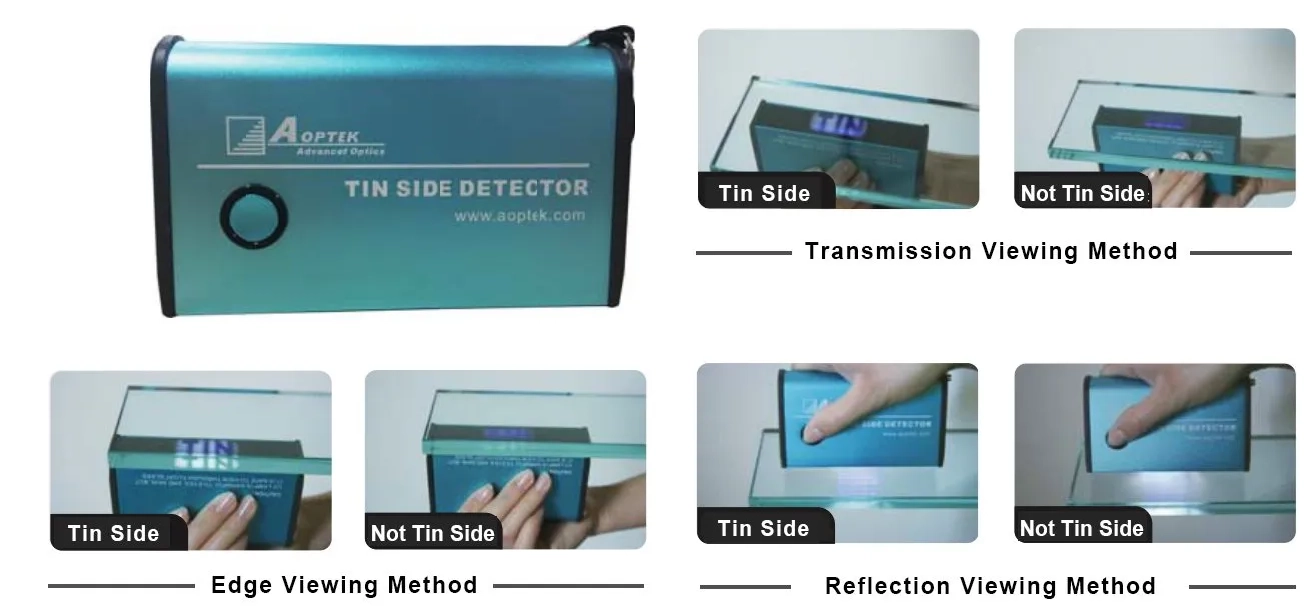

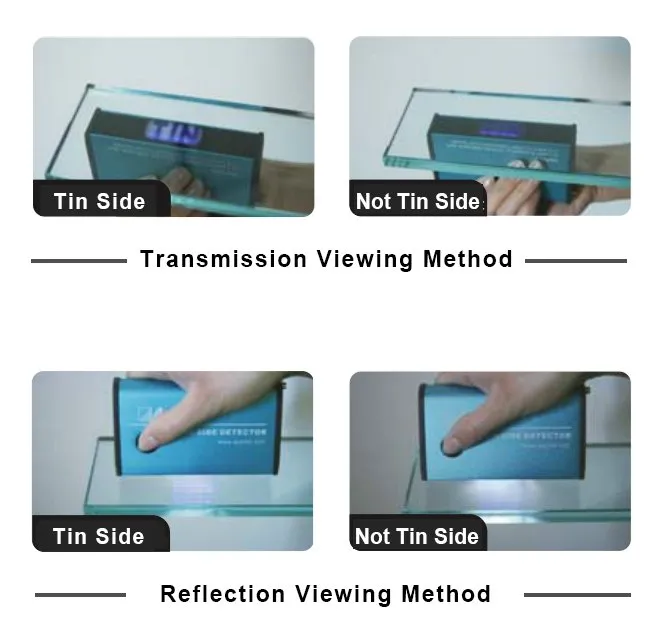

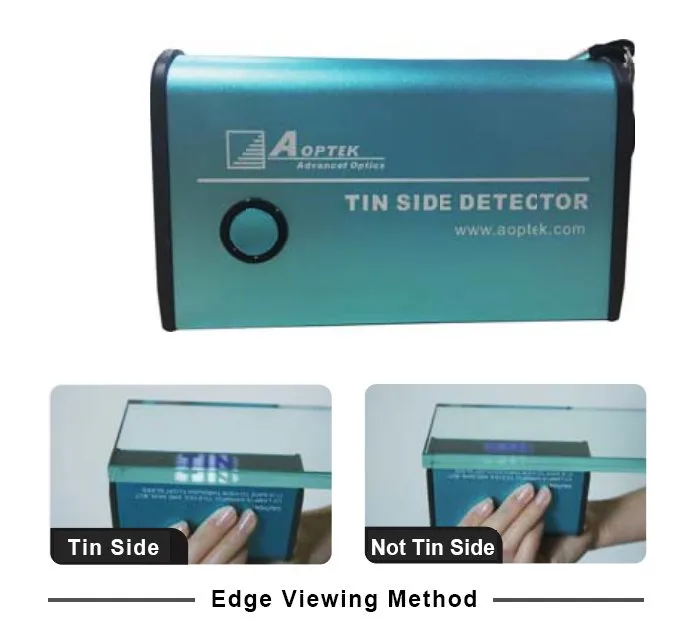

TS580 is used to detect the tin side of float glass. Creative image with text indicator and light filtering technology ensures extraordinary effect. With built-in rechargeable lithium battery, compact and portable features, it is widely applied in glass deep processing industry for tin side detecting. There are three detecting modes, transmission detecting modes, reflection detecting modes and edge detecting modes，it is easy to operate and observe.
This instrument is suitable for measuring architectural glass, automotive glass, and solar pv (photovoltaic) glass.
Measurable Objects
Float Glass
Ultra-Clear Float Glass
Colored Float Glass
Suitable for Measuring Architectural Glass
Suitable for Measuring Automotive Glass
Suitable for Measuring Solar PV Glass
Functions
identifying the tin side of float glass
Features
Compact and Portable
Palm-width, built-in rechargeable lithium battery
Easy to Operate and Observe

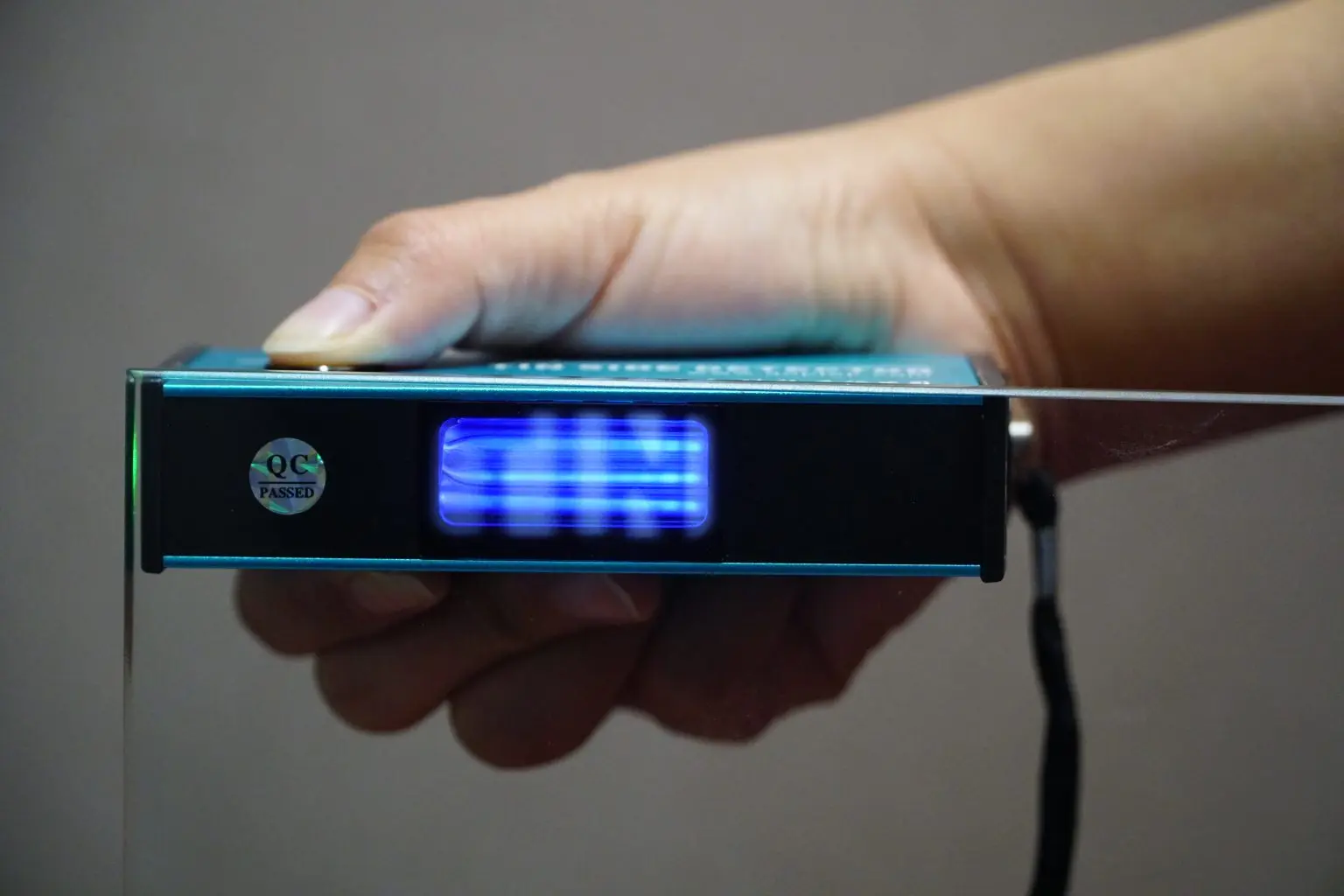

“TIN” indication, three detecting modes, and can be operated with one hand
High Quality, Long Service Life
The battery is detachable
Innovative Patent Product
Own multinational patents
Parameters
| Item | Parameters |
|---|---|
Working mode | Manual detect |
Working time | 3h |
Power supply | USB DC5V1A |
Battery | ICR 18650 |
Dimension | 120×26×70mm |
Weight | 200g( with battery) |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
