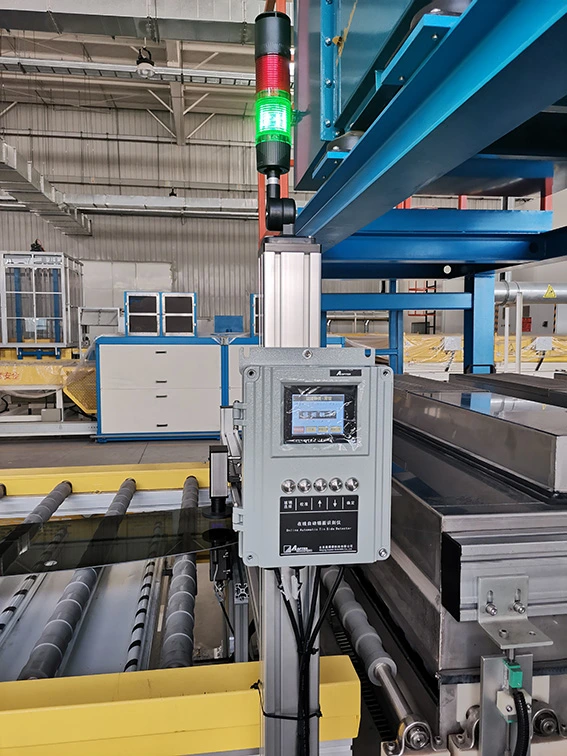

TS2600
Online Automatic Tin Side Detection System
Online detect tin side automatically
TS2600 is an intelligent and automatic tin side detection system for float glass. It is applied in the further process-ing of float glass, such as laminating，tempering, coating, screen-printing, colored glazing, etc. It can detect the tin side of float glass rapidly and effectively, satisfy deep processing needs. effectively, satisfy deep processing needs.
This instrument is suitable for measuring architectural glass, solar pv (photovoltaic) glass, and automotive glass.
Measurable Objects
Float Glass
Tinted Float Glass
Ultra-Clear Float Glass
Suitable for Measuring Architectural Glass
Suitable for Measuring Solar PV Glass
Suitable for Measuring Automotive Glass
Functions
Tin Side Dection
Features
Online Automatic Detection
Automatically detect the tin side of float glass.
With Indication and Alarm Signals
With indication and alarm signals
Export Effective Signal
With external extension signal interface
Tinted Glass Measurement
Can measure tinted glass.
Parameters
| Item | Parameters |
|---|---|
Working mode | Online |
Response time | 0.5s / 1.0s |
Upper head size | 100*140*204mm |
Control box size | 210*100*295mm |
Lower head to
glass lower side | 1~1.5mm |
Power supply | 100~240VAC,50/60Hz |
| Item | Parameters |
|---|---|
Glass thickness | 1～19mm |
Transmission range | >20% |
Lower head size | 240*63*230mm |
Interface | PLC relay interface |
Gap | 40mm |
Power | 60W |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
