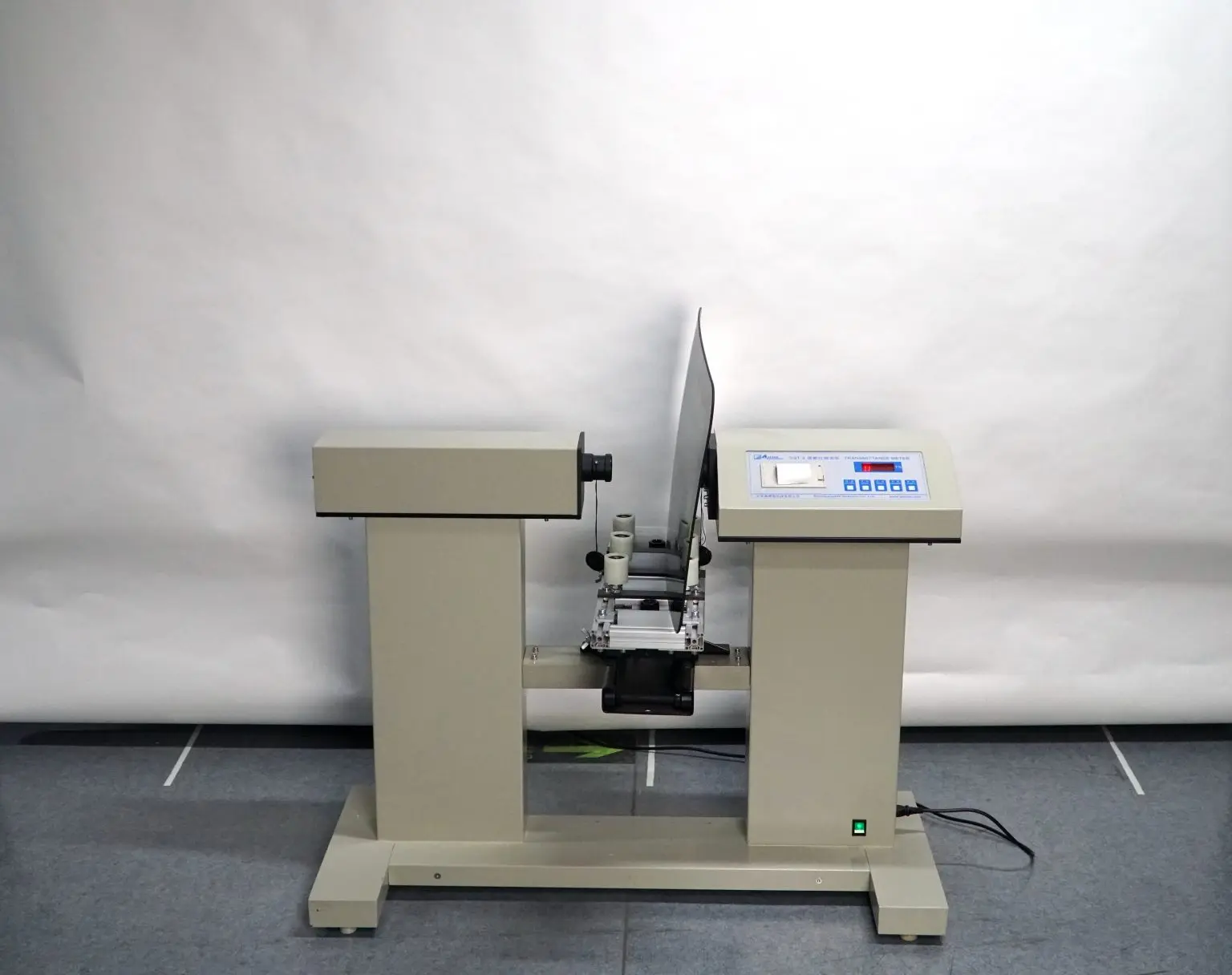

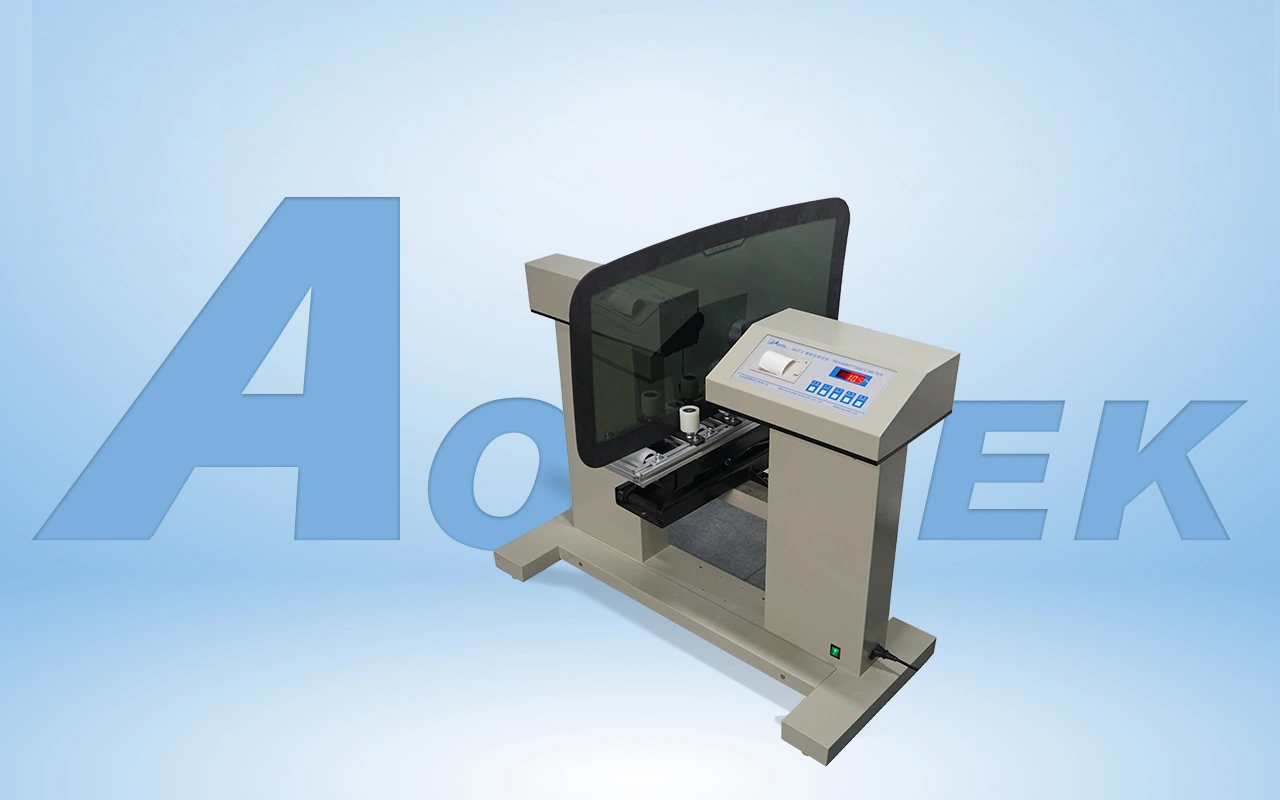

SGT-3
Safety Glass Transmittance Instrument
Measure the visible transmittance of automotive glass. Standard: ISO3538 Road vehicles – Safety glazing materials – Test methods for optical properties.
The SGT-3 is used to measure the visible transmittance of automotive glass. It not only measure small sample, but also measure the large pane of actual automotive windshield, which is suitable for glass production enterprises and research institutes.The instrument is also used to measure the visible light imaging transmittance of other safety glass or laminated glass.
Measurable Objects
Safety glass
Laminated glass
Dimming glass
Functions
Visible transmittance
Features
Intelligent control, calibrate & display automatically
Reasonable structure and convenient operation
Automatically deduct stray light and dark current, strong anti-interference
Collect data automatically, stably and accurately

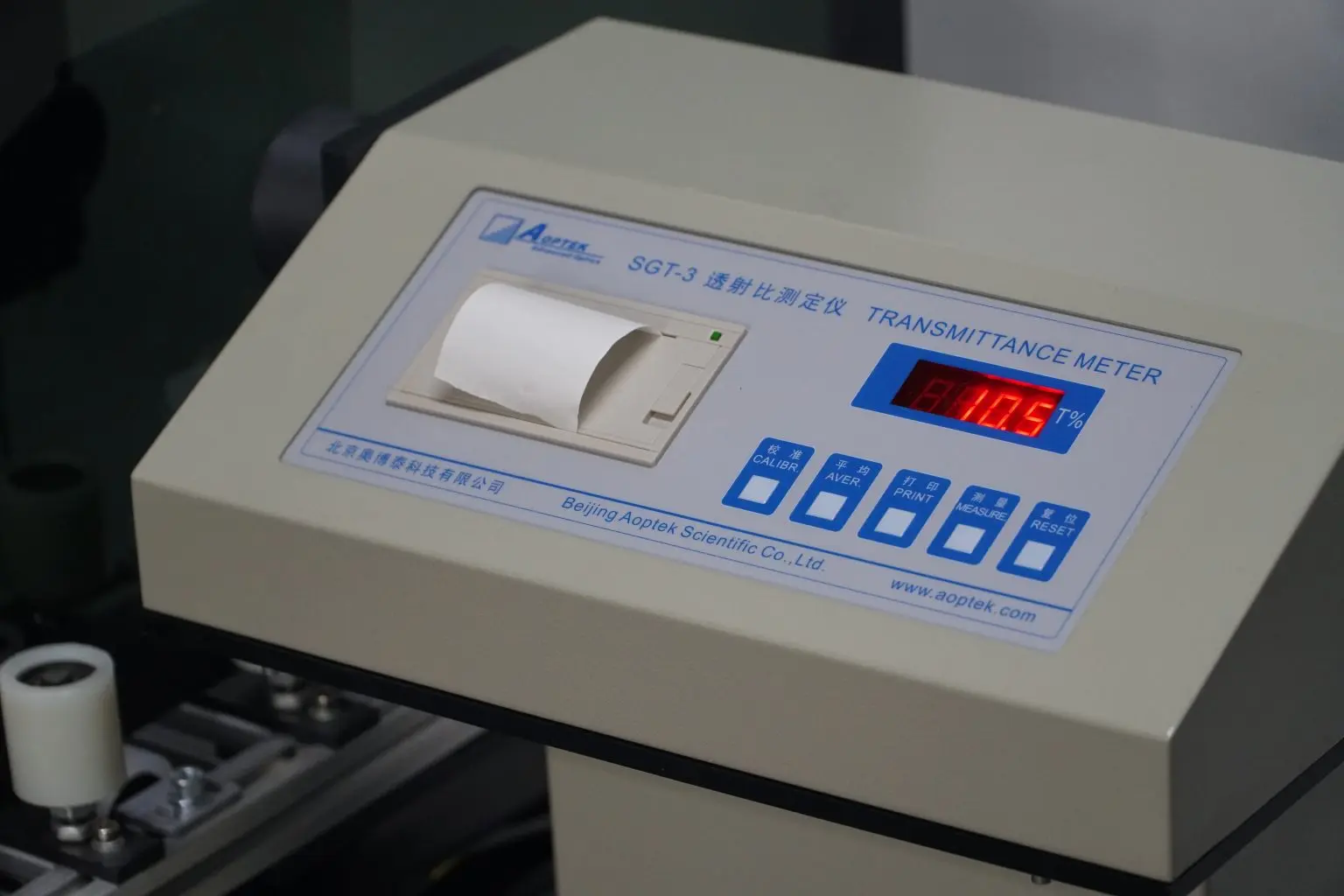

Printer is built-in
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | Comply with ISO3538 / GB/T5137.2 |
Illuminant | CIE standard illuminant A |
Observer | CIE1931 V (λ) |
Repeatability | 0.2% |
Accuracy | 1% |
Sample size | Min: 80*80mm |
| Item | Parameters |
|---|---|

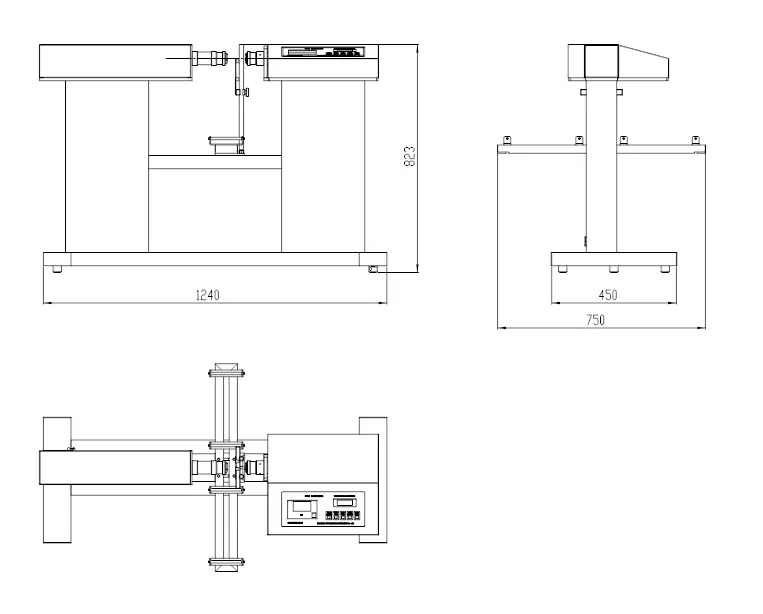

Dimension | 1100*500*830mm |
Power supply | 100~240VAC, 50/60Hz |
Power | 100W |
Weight | 75kg |
Working conditions | 0°C~40°C ≤ 90%RH |
