High Precision Hazemeter
Products

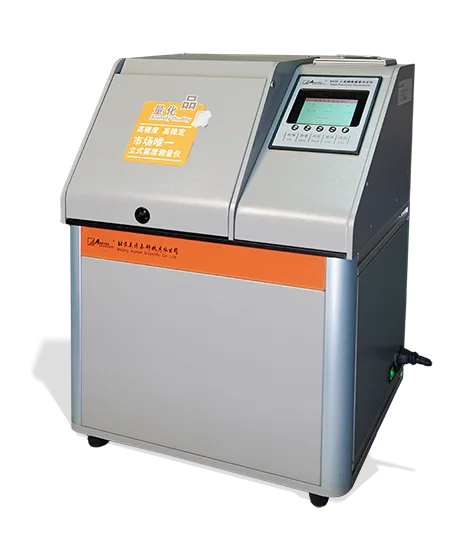

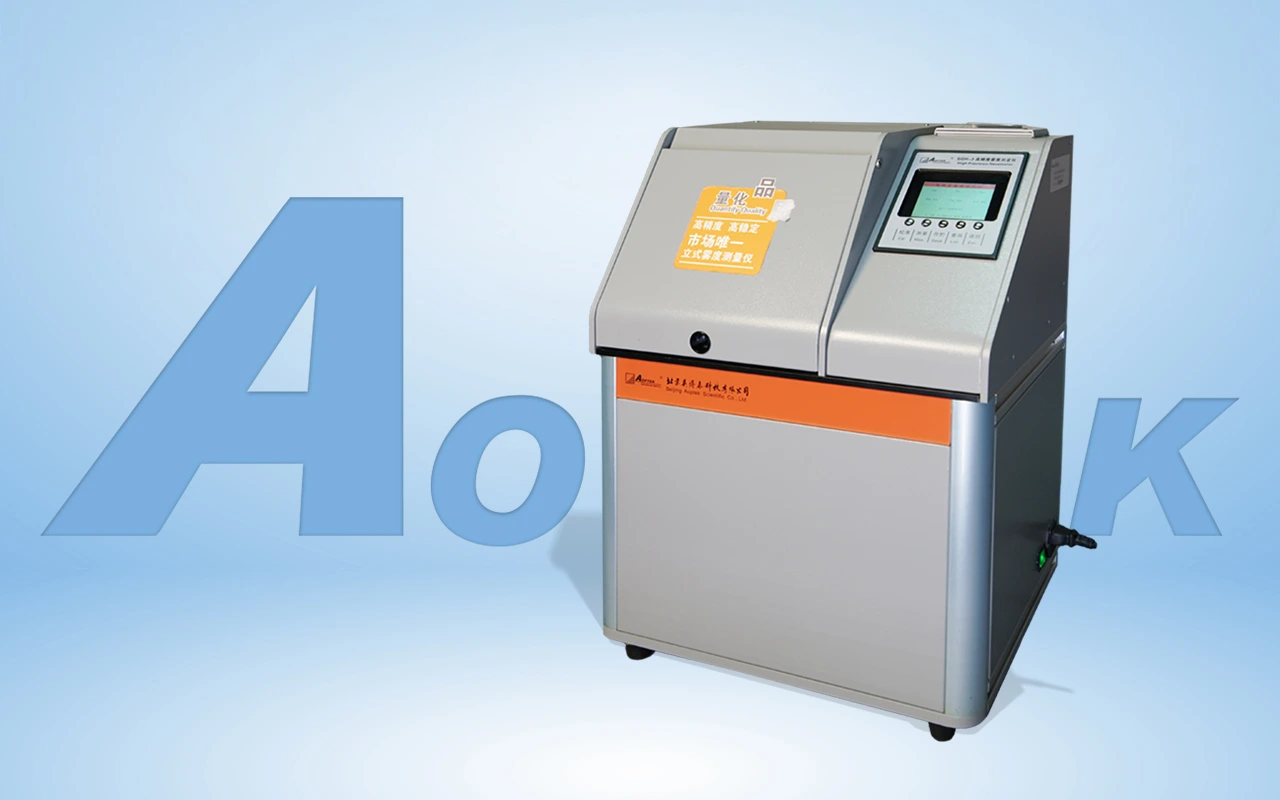

SGH-2
High Precision Hazemeter
Measure the haze of materials Standard: ASTM D1003 Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics.
The SGH-2 is an intelligent haze meter, applied in haze and visible transmittance measurement of automotive glass, architectural glass, display glass, and other materials, such as EVA, plastic film etc. It has high measuring accuracy and fast speed, and has been calibrated by the NIM in China.
This instrument is suitable for measuring architectural glass and automotive glass.
Measurable Objects
Plate Glass: Automotive glass, architectural glass, display glass, etc.
EVA Film: Plastic film, etc.
Suitable for Measuring Automotive Glass
Suitable for Measuring Architectural Glass
Functions
Visible Light Haze
Visible Light Transmittance
Scattered Light Transmittance
Features
Fast Speed and Easy Operation
Fast speed and easy operation
High Precision and Stability
High measurement accuracy, 0.01% resolution
Vertical Haze Measurement
Vertical haze measurement
Small Haze Values Measurement
small haze values measurement
Data Display
The measurement data is displayed on the screen. This device has a built - in micro - printer, which allows users to print out measurement results conveniently.
Independent Intellectual Property Rights
Independent intellectual property rights
Parameters
| Item | Parameters |
|---|---|
Light spot | 7±1mm |
Illuminant | CIE standard illuminant A |
Observer | CIE1931 V (λ) |
Haze range | 0~30% |
Resolution | 0.01% |
| Item | Parameters |
|---|---|

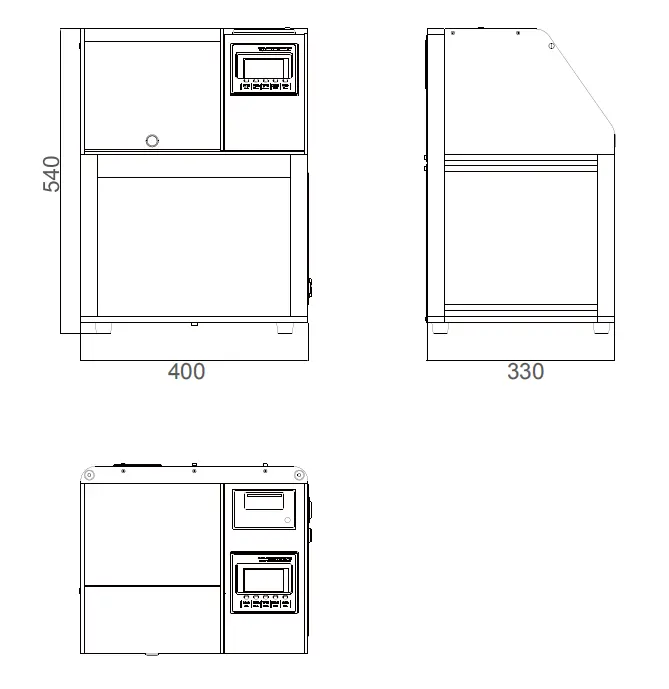

Dimension | 400*330*540mm |
Sample size | 200*200mm |
Power supply | 100~240VAC, 50/60Hz |
Power | 100W |
| Range | Accuracy | Repeatability | |
|---|---|---|---|
Accuracy & Repeatability | 0~2% 2~10% 10~30% | 0.3% 0.5% 2% | 0.1% 0.1% 0.1% |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
