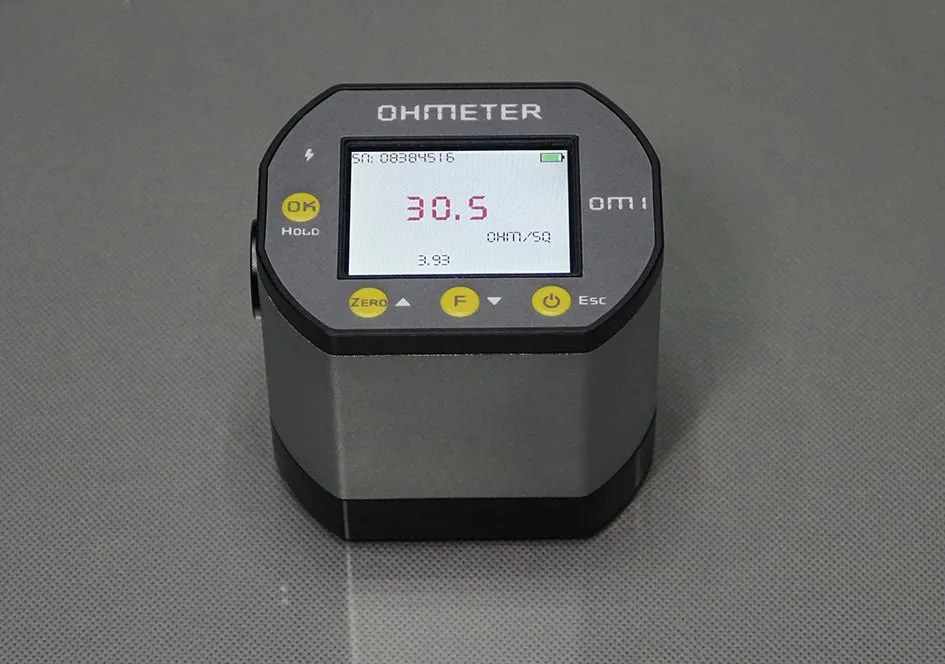

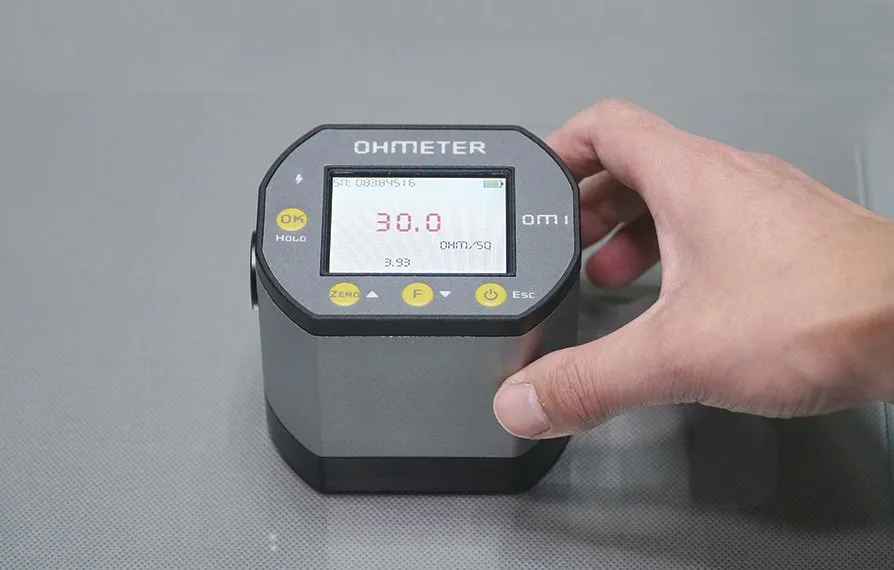

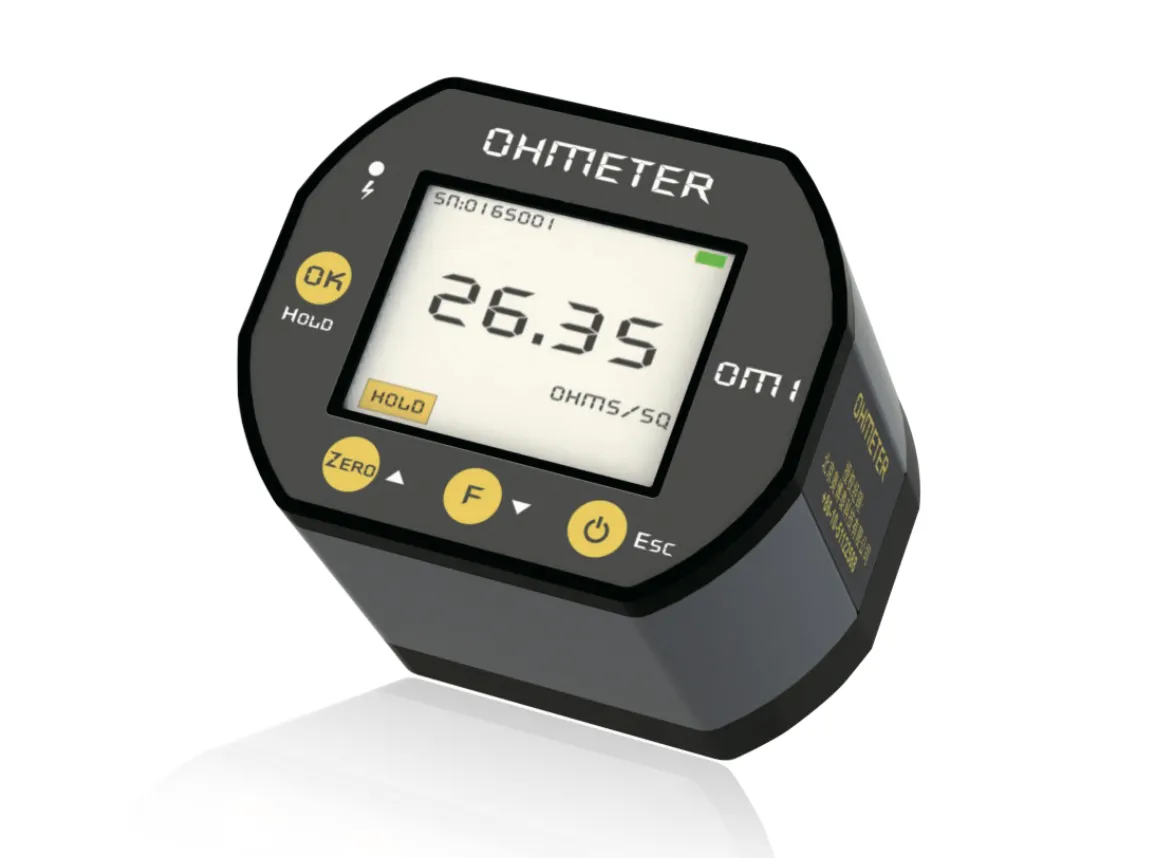

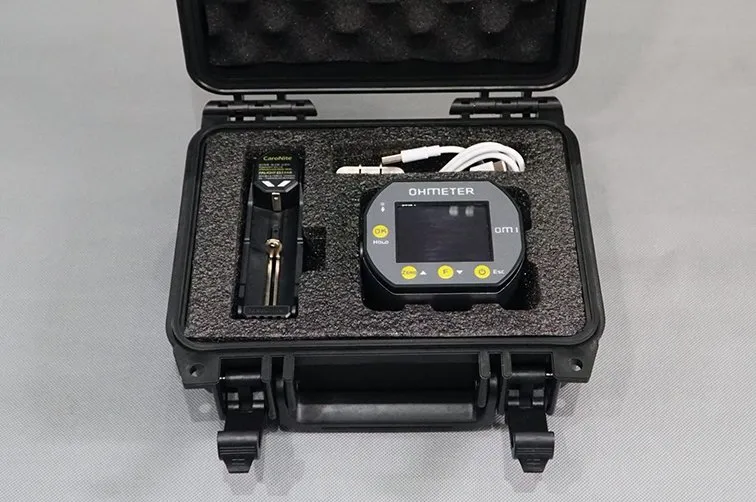

OM1
Non-Destructive Sheet Resistance Meter
Small portable / Simple operation / Fast and contact-free measurement.
This OM1 is a compact measuring device for the contact-free measurement of sheet resistance of electrically conducting coatings on insulating materials, such as metal-coated glass, plastic films, etc.
This instrument is suitable for measuring architectural glass, solar pv (photovoltaic) glass, and automotive glass.
Measurable Objects
Low-E coated glass, including on-line coating and off line coating
TCO photovoltaic glass, ITO glass, touch screen glass, LED luminescent glass
Transparent conductive film materials
Synthetic metal sheet and conductive paper
Synthetic metal sheet and conductive paper
Suitable for Measuring Architectural Glass
Suitable for Measuring Automotive Glass
Functions
Sheet Resistance (Ohm/Sq)
Features
Contact-Free Measurement
Contact-free measurement
Non-Destructive Layers
Non-destructive layers
Built-In Rechargeable Battery
Built-in rechargeable battery
Fast Measurement
Fast measurement
Real-Time Test
Real-time test
Parameters
| Item | Parameters |
|---|---|
| Meas. speed | 1s |
| Repeatability | 1% (0.5~5 Ohm/sq) 2% (5~20 Ohm/sq) 3%(20~50 Ohm/sq) |
| Charging time | 3h |
| Working conditions | 0~40°C, <90% RH |
| Weight | 500g |
| Item | Parameters |
|---|---|
| Meas.range | 0.5~50 Ohm/sq |
| Accuracy | 3% (0.5~5 Ohm/sq) 5% (5~20 Ohm/sq) 7%(20~50 Ohm/sq) |
| Working time | 6h |
| Battery | ICR 18650 |
| Dimension | 93*75*75mm |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
