GlassMeter800K
U Value Meter For IG
Measure thermal transmittance (U/K value). Standard: ISO 10292, EN673, JGJ/T 151, ISO 15099, NFRC 100.

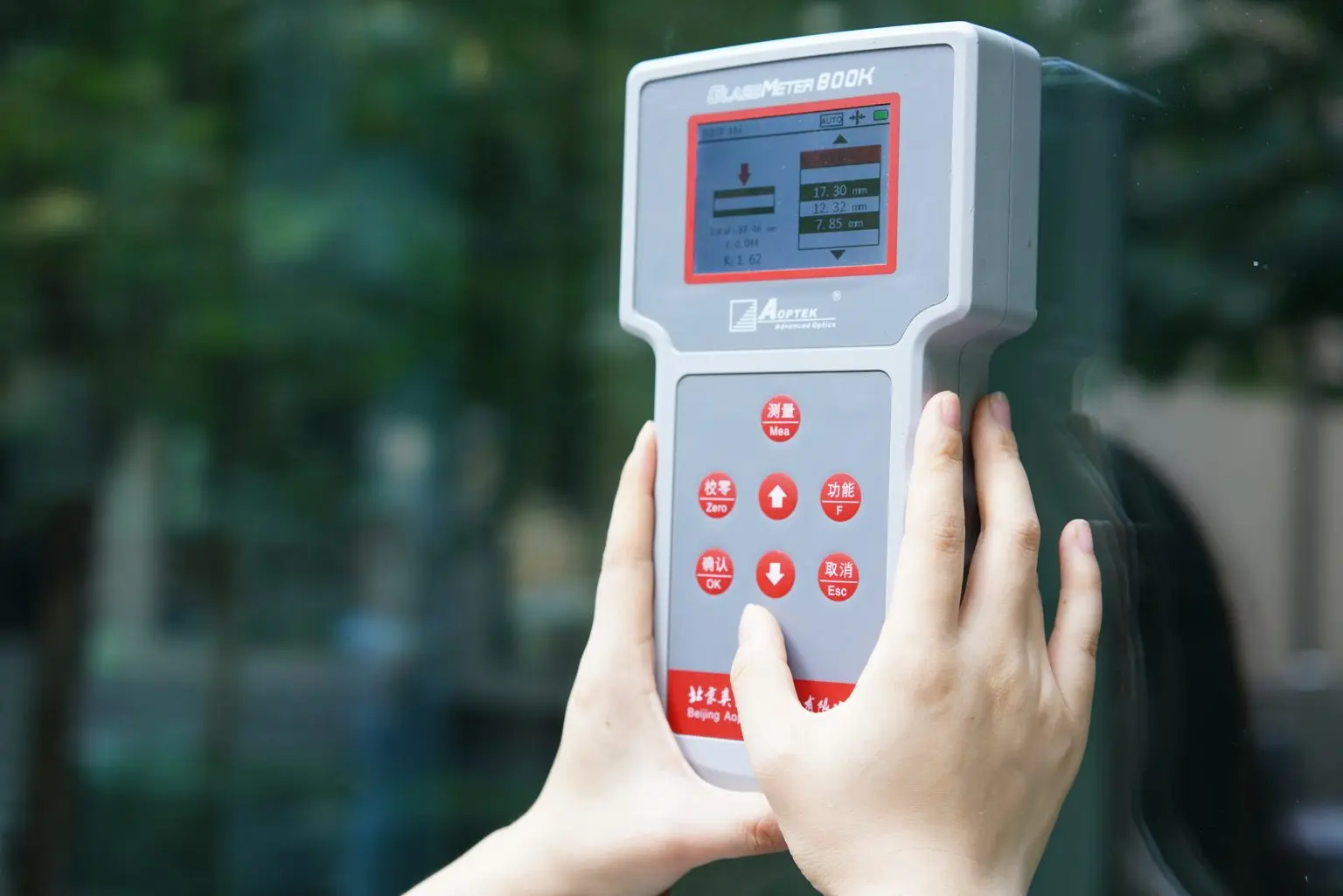

This instrument is used to directly measure the glass thickness, air space, detect the Low-E side of DGU or TGU, and then calculate the E value and U value , which has the characteristics of portable design, simple operation and fast measurement. It is especially suitable for on-site measurement of installed building glass, doors and windows.
Measurable Objects
Building glass
Insulating glass
Low-E glass
Functions
Nondestructive measure the U value
Detect the Low-E side, measure the E value
Measure the thickness of DGU or TGU
Features
Especially suitable for on-site measurement of existing building glass, doors and windows
It can accurately measure the glass thickness, air space of DGU or TGU, and identify the position of the Low-E side.

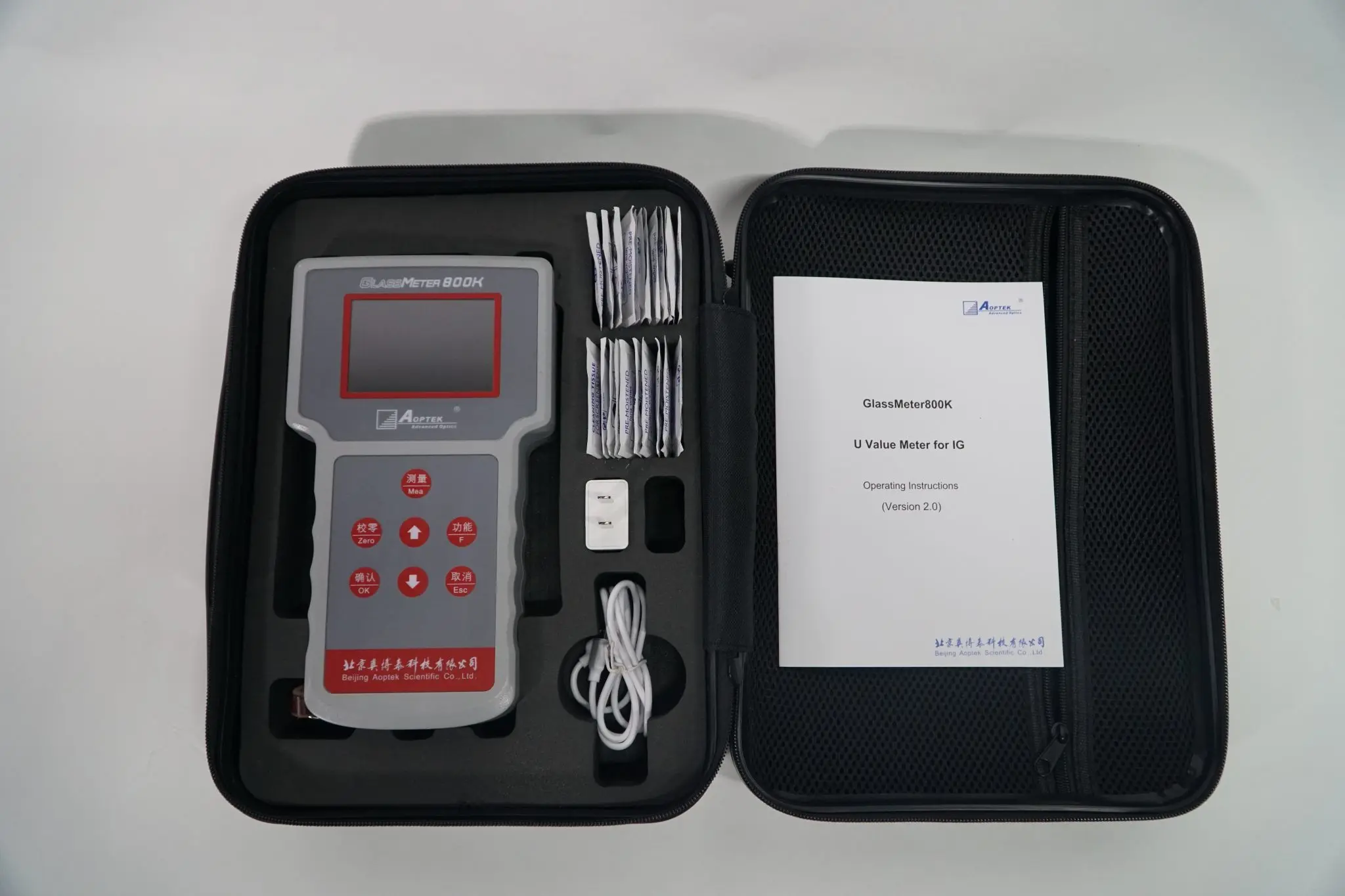

Portable instrument powered by a rechargeable lithium battery.
Fast measurement speed

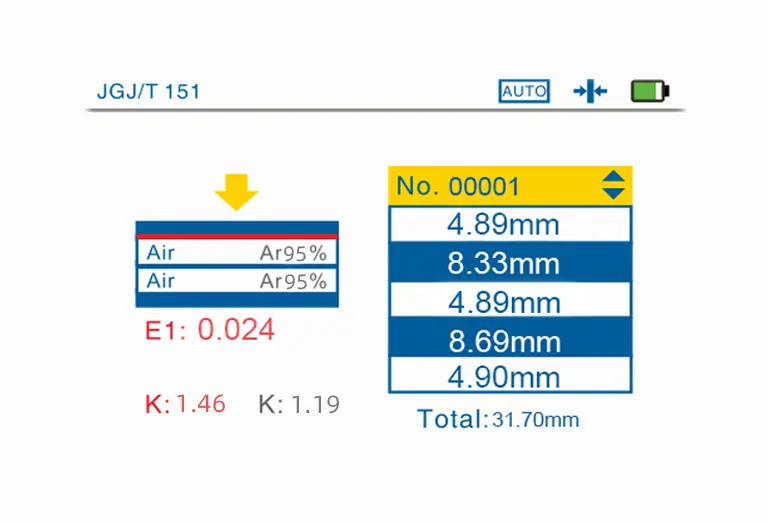

Integrating multiple functions, it can measure the thickness, the position of Low-E side and the U value.
Parameters
| Item | Parameters |
|---|---|
Max thickness of TGU | 6+12A+6+12A+6 |
Charging time | 3 hours |
Power supply | 5V,2A |
Working conditions | 0~40°, ＜ 90% RH |
Dimension | 240*135*50mm |
Min size | 200*100*2mm |
Working time | 5h |
Battery | ICR 18650 |
Weight | 800g |
Restrictions | It can not measure glass with scattering characteristics such as patterned glass, colored glazed glass and frosted glass. The max allowable error is ±0.2mm for the thickness less than 20 mm. Avoid direct sunlight when measuring. |
| U value (K value) | Thickness | |
|---|---|---|
Max allowable error | ±0.1 (U<2.0) ±0.2 (U≥2.0) | ±0.1mm(contacted glass) ±0.2mm(noncontacted glass or space) |
