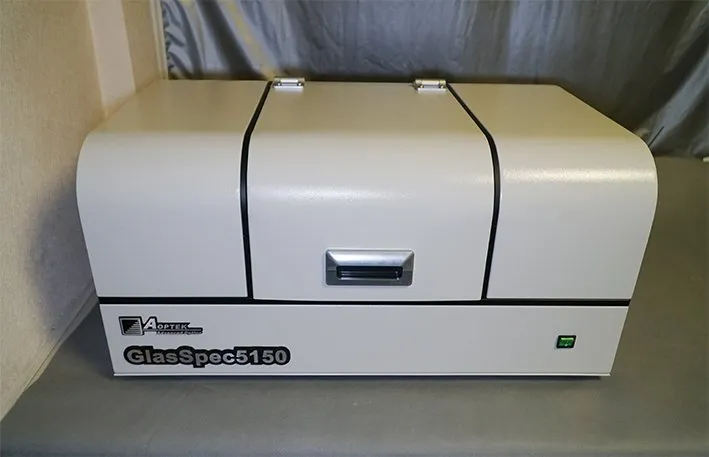

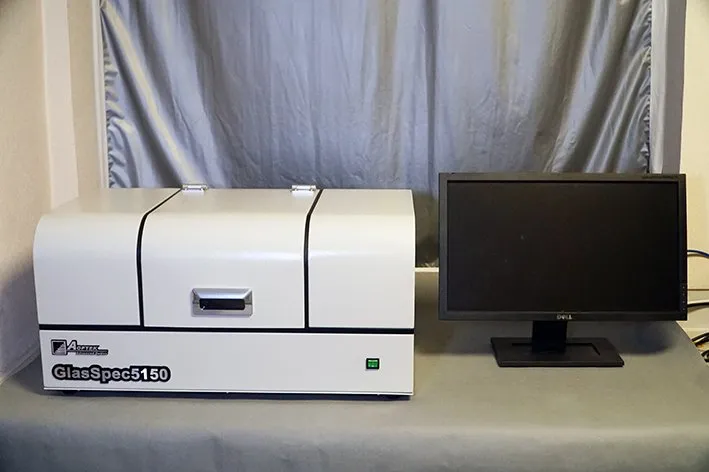

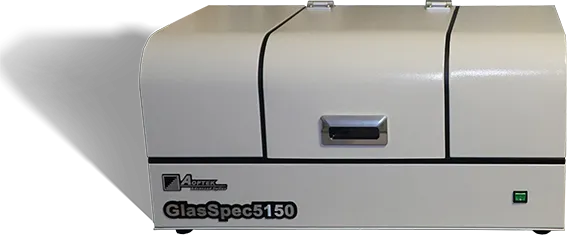

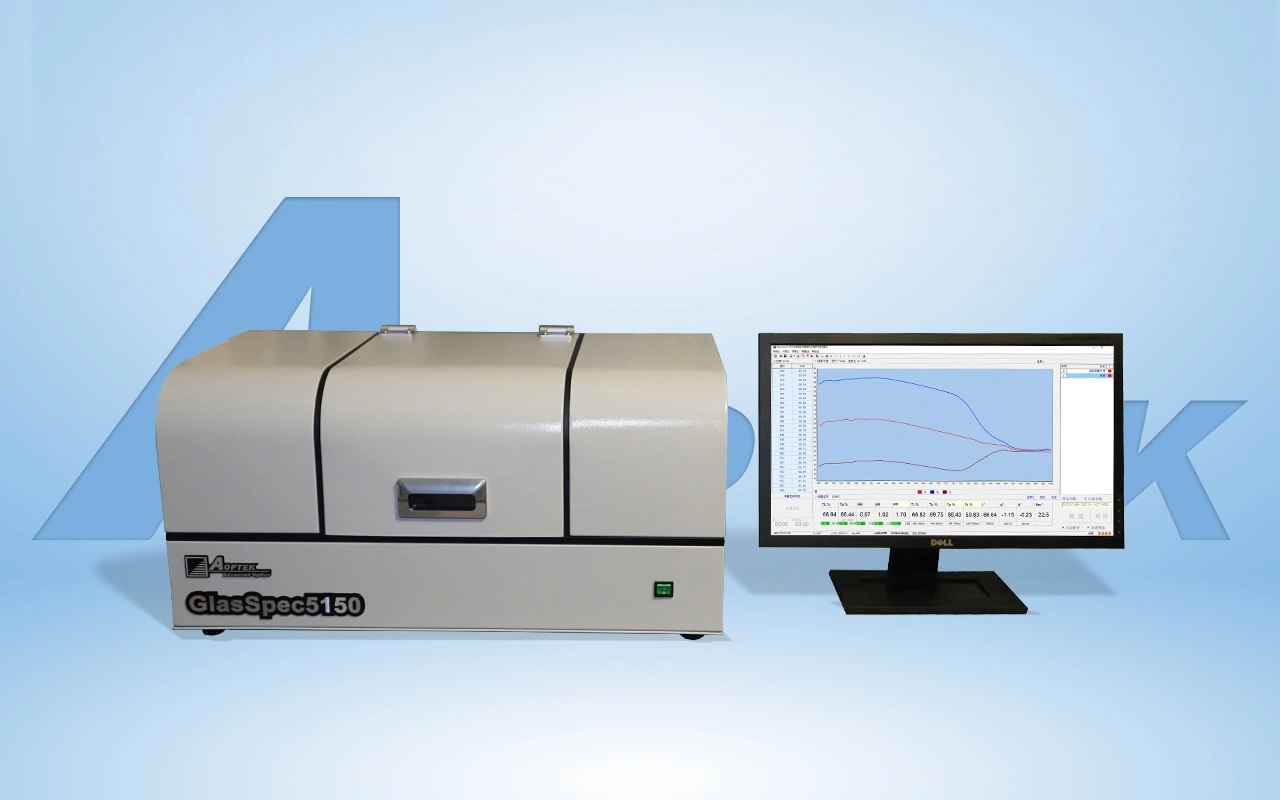

GlasSpec5150
Spectrum Transmittance Instrument in Camera Area of Windshields
Measure spectrum transmission of camera area of windshield in special angle.
This GlasSpec5150 is used to measure the spectrum transmission of the camera area of windshield， and calculate TL, Ta, Tr, Tb, Ts, Tp, RR, BR, PR, Y, x, y, L *, a *, b *, etc. Users can save and print the measured results.
This instrument is suitable for measuring automotive glass.
Measurable Objects
Automotive Glass: This Instrument is applied to camera area of windshield
Functions
Visible Light Transmittance TL, Total transmittance Ta ( 440-700nm)
Red Light Transmittance Tr, Blue light transmittance Tb , S light transmittance Ts, P light transmittance Tp
Red light ratio RR, Blue light ratio BR,Polarization ratio PR ，Transmittance color Y, x, y, L *, a *, b *
Traffic signal light transmission chromaticity x, y
Features
Automotive Glass Measurement
Measure spectrum transmission of camera area of windshield in special angle.
Rapid Measurement
Rapid measurement of small samples
Multi-Angle Measurement
Multi-angle measurement
P/S Polarized Beam Splitting Measurement
P/S polarized beam splitting measurement
Parameters
| Item | Parameters |
|---|---|
Meas. object | Camera area of windshield |
Meas. angle | 16°~90° |
Wavelength Resolution (FWHM) | 3~5 nm |
Wavelength interval | 1nm |
Meas. speed | ≤ 5s |
Cal. method | Zero cal. & 100% cal. |
Power supply | 220VAC, 50Hz |
Repeatability | 0.15% |
Dimension | 700*450*350 mm |
Working conditions | 0 °C~40°C ≤90%RH |
| Item | Parameters |
|---|---|
Geometric conditions | 0°/ 0° |
Wavelength range | 380~1000nm |
Wavelength accuracy | <0.3nm |
Spot size | Ø8 |
Sample size | Min 100*100mm |
Interface | RJ45 |
Power | 200W |
Uncertainty | 1.0% |
Weight | 30kg |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
