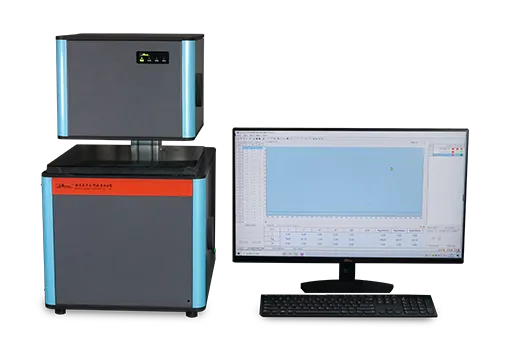

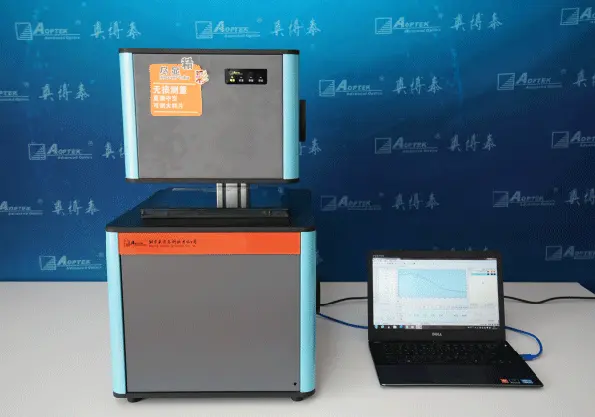

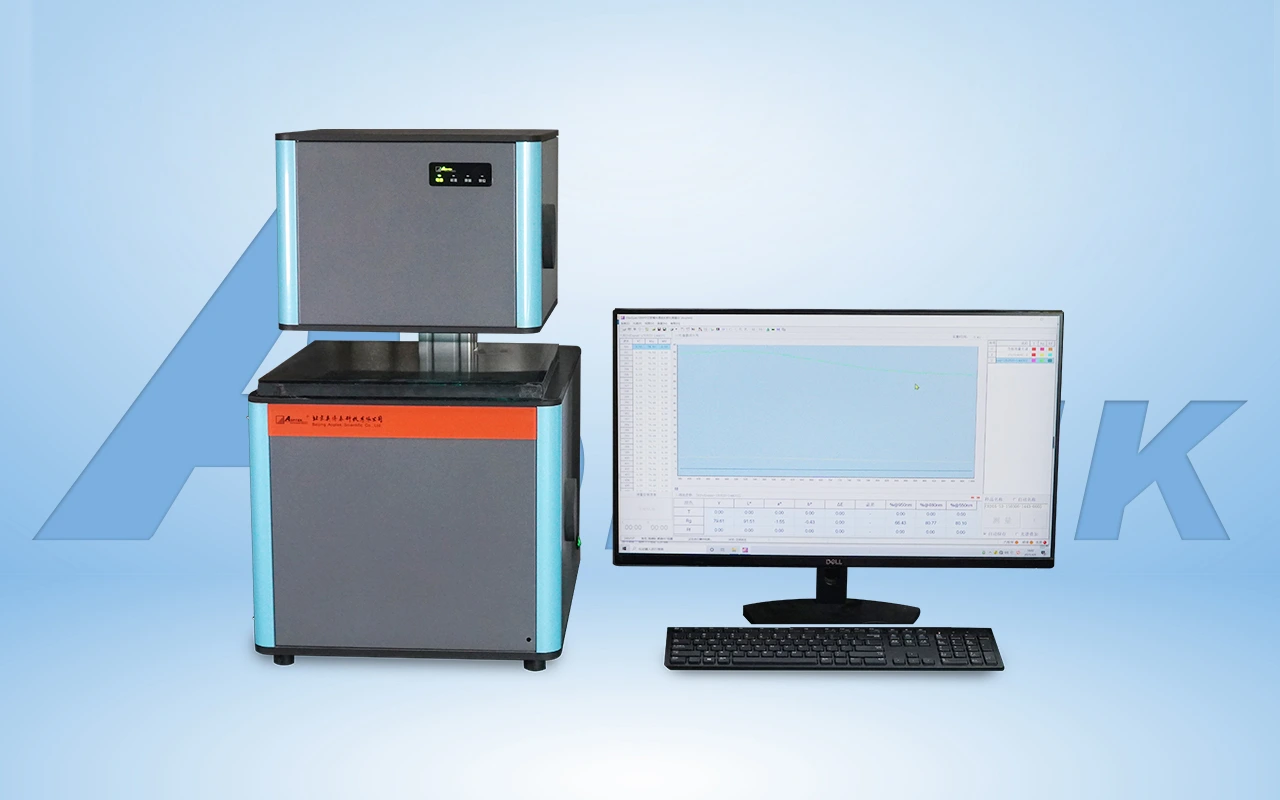

GlasSpec1000
Spectrum Transmittance and Reflectance Measuring Instrument for Insulating Glass
Specified instruments to measure Visible and NIR spectrum for IG. Standard: ISO 9050 Glass in building; determination of light transmittance, solar direct transmittance, total solar energy transmittance and ultraviolet transmittance, and related glazing factors.
GlasSpec1000 is used to measure spectrum transmittance and spectrum reflectance. The instrument not only can measure the optical parameters of single pane, but also can directly measure IG to meet the needs of manufacturers and quality inspection institutions.
GlasSpec1000 can measure the overall direct spectrum transmittance and spectrum reflectance without destroy- ing IG structure. With special software function, we can directly obtain the color parameters of single-pane glass.
Measurable Objects
Single glass
Other materials
Insulating glass & Laminated glass
Functions
Spectrum transmittance τ(λ)
Visible transmittance (τv)
Color coordinates(Yxy、L*a*b*)
Features

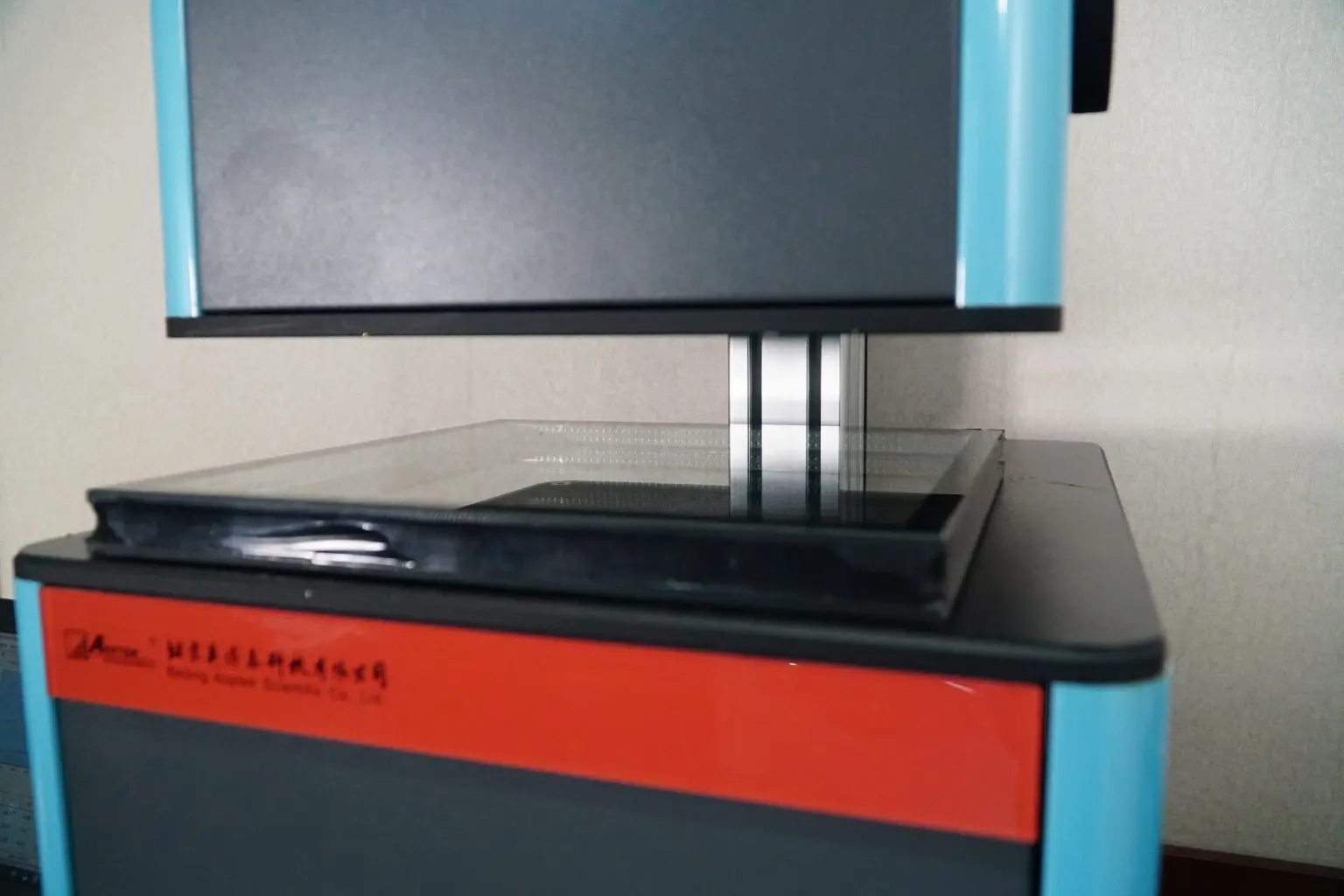

Fast and directly measure IG without separating the glass.
Wavelength range 380 ~1000nm
Fast measurement speed which meet the requirements of mass measurements. The whole set of photothermal parameters can be measured in about 5 minutes.
Single-pane value can be calculated
Standard calculation, complete set of optical parameters are calculated according to relevant standards.
Patent products with independent intellectual property rights.
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 8°/ 8° |
Light source | Halogen |
Interface | RJ45 |
Glass thickness | < 45mm |
Sample size | Min:50*50mm, Max: 220mm from the edge |

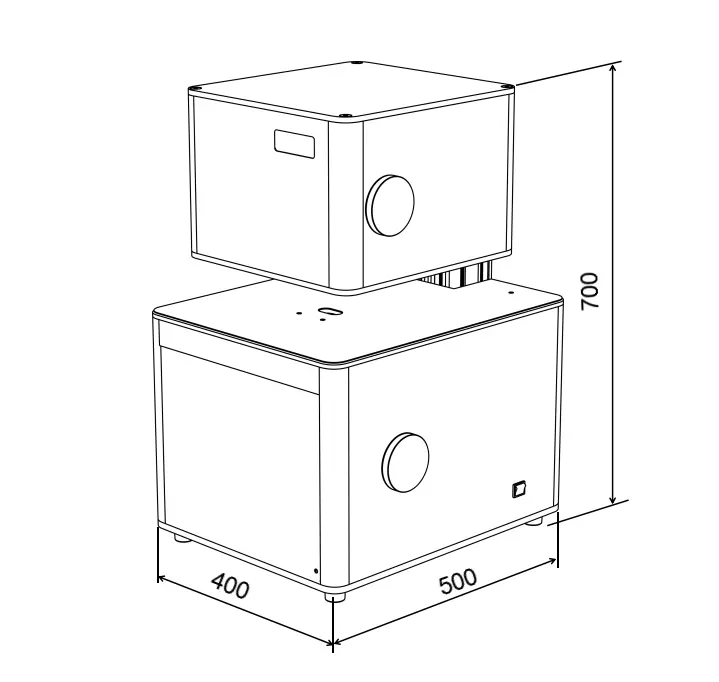

Dimension | 500*400*700mm |
Power supply | 100~240VAC, 50/60Hz, 150W |
| Item | Parameters |
|---|---|
Wavelength range | 380~1000nm |
Reflectance range | 0~100% |
Wavelength resolution(FWHM) | 3~5nm |
Wavelength accuracy | 0.3nm |
Measuring table size | 400*410mm |
Measuring speed | ≤ 5s for full spectrum measurement (T/Rg/Rf) |
Weight | 45Kg |
