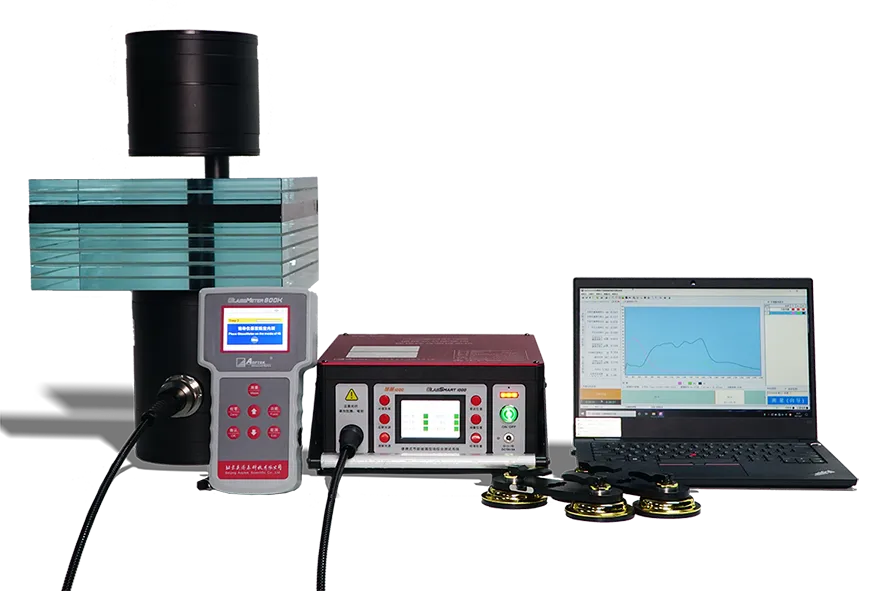

GlasSmart1000

On-site Optical and Thermal ParametersMeasuring System for Insulating Glass

Field-measuring instrument for green building, passive house, Energy-saving construction. Standards:ISO 15099,ISO10292,ISO 9050

GlasSmart1000 is a portable measuring system suitable for on-site measurement of installed building glass. It can quickly measure the glass structure, non-destructive measure U value and SHGC of insulating glass.

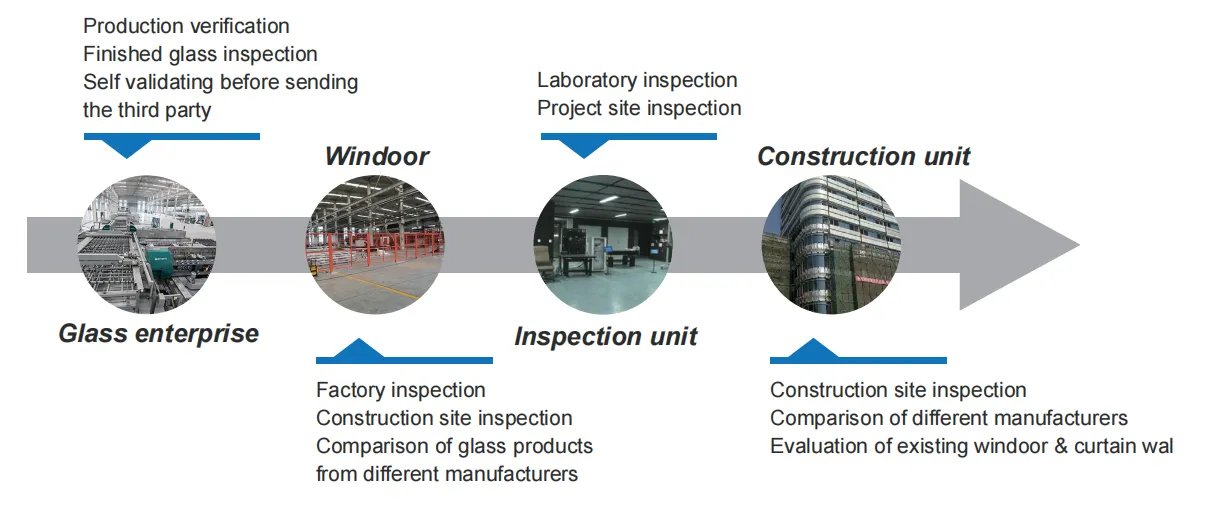

It is especially suitable for testing and evaluating the performance of installed glass on engineering site, and verifying the consistency between large IG glazing and small sample. To help owners, consultant companies, construction and supervision units understand glass quality, and to help construction quality supervision departments and inspection agencies quickly determine whether glass is energy-saving and whether it meets local building energy-saving standards.

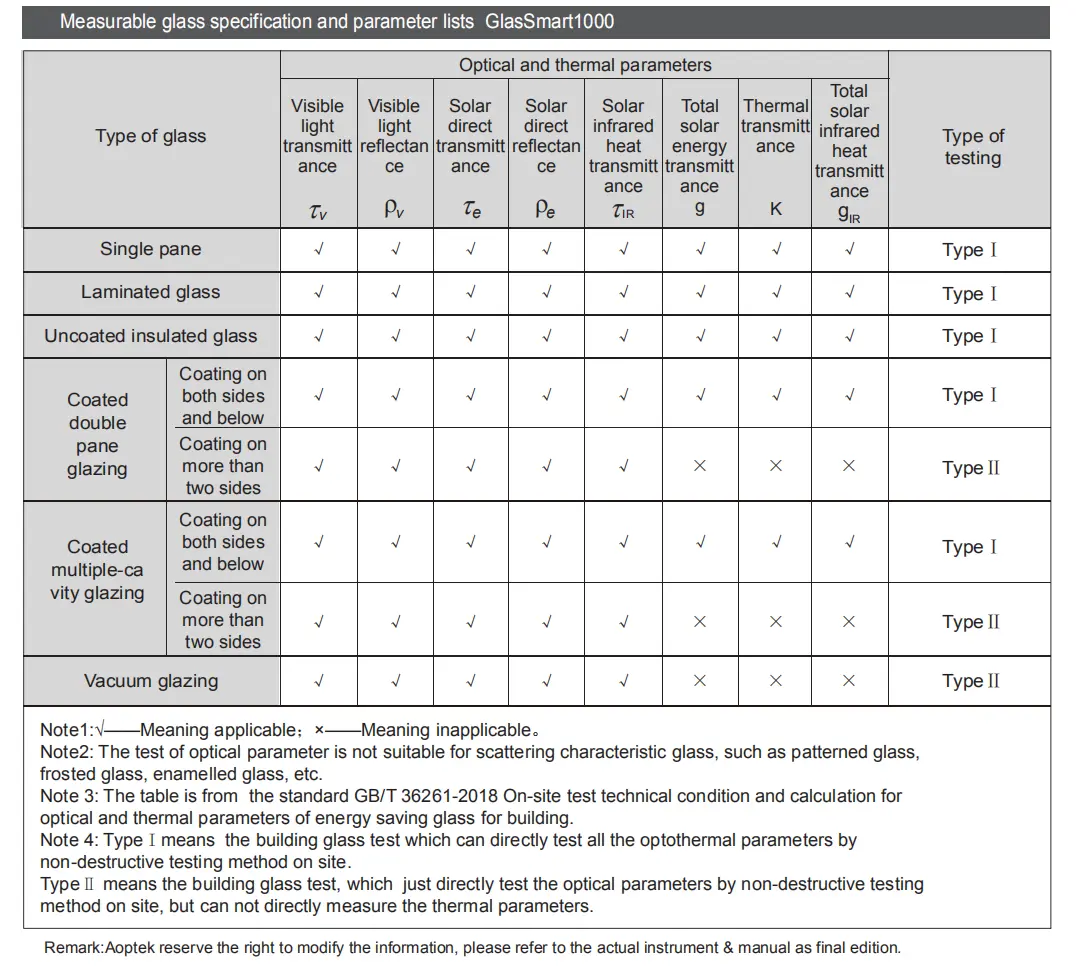

Measurable Objects

Single glass

Single glass

Insulating glass

Insulating glass

Laminated glass

Laminated glass

Vacuum glass

Vacuum glass

Functions

Spectral Transmittance τ(λ)

Spectral Transmittance τ(λ)

Visible Light Transmittance

Visible Light Transmittance

U Value

U Value

Direct Solar Transmittance

Direct Solar Transmittance

Solar Direct Infrared Transmittance τIR

Solar Direct Infrared Transmittance τIR

Total Solar Transmittance g

Total Solar Transmittance g

Position of Low-E Coating

Position of Low-E Coating

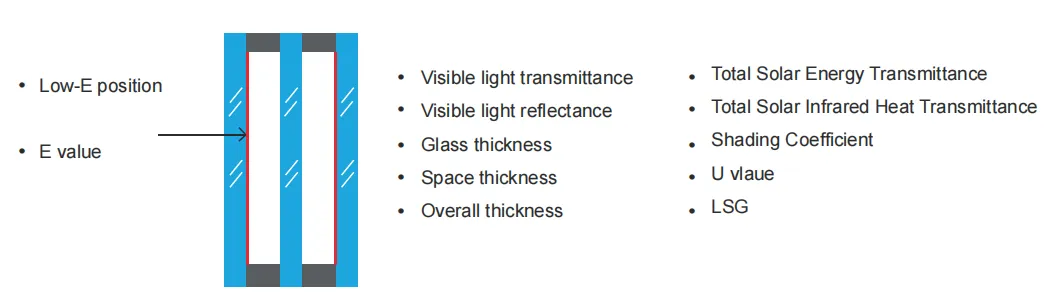

Features

All basic parameters can be measured

All basic parameters can be measured, spectrum transmittance & reflectance, thickness, Low-E side, and E value.

Parametric Calculation

All optical and thermal parameters are calculated according to relevant standards.

Non-destructive measurement

Nondestructive measurement, directly measure the optical and thermal parameters of IG

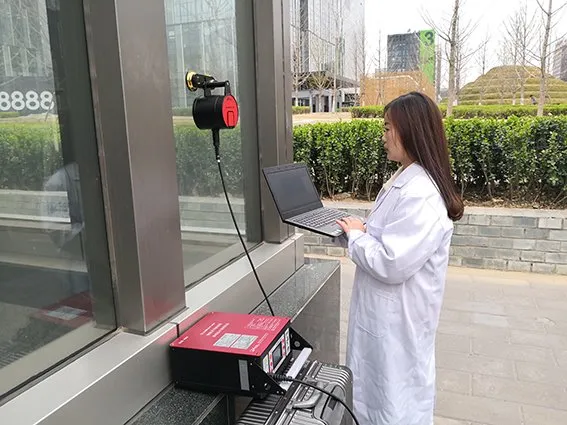

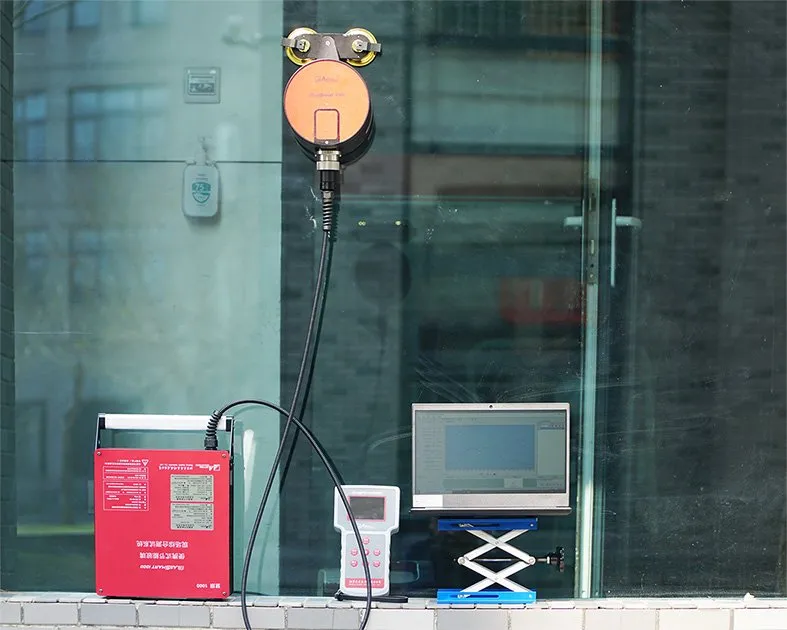

Field measure

Field measurement, directly measure the installed glass.

Guided measurement, easy to use.

Guided measurement, easy to use.

Reliable result

Reliable result, the measurement value can be traced back to NIM.

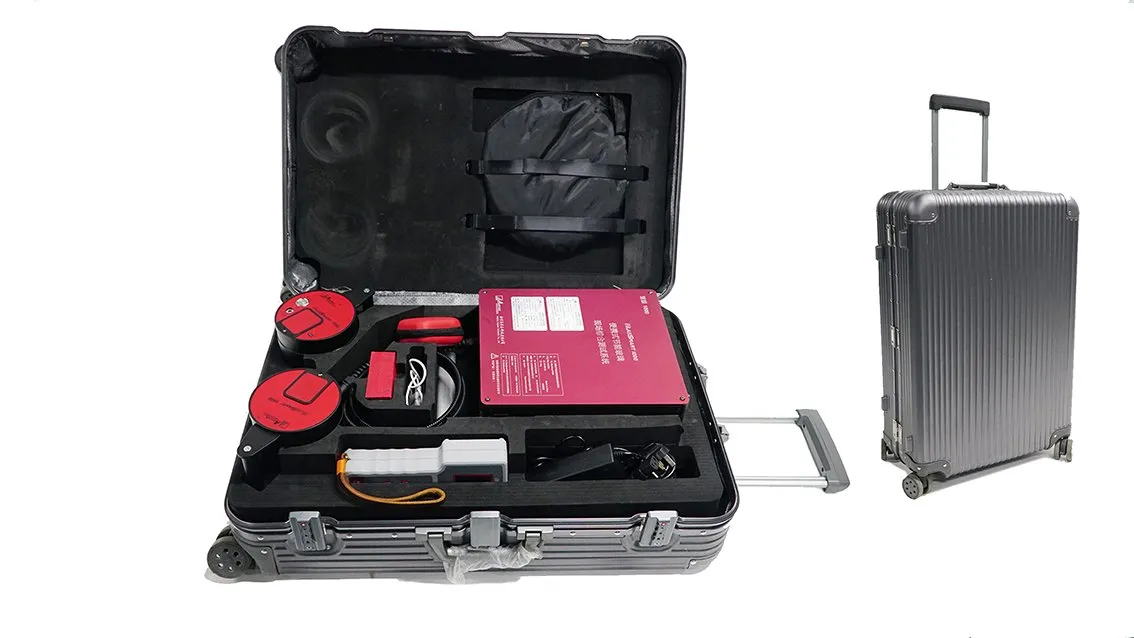

Convenience and Portable

Lithium battery power supply, suitable for site use. Wireless connection, connected with computer by wifi.

Parameters

ItemParameters
Light source
Halogen
Wavelength range
300~2500nm
Interface
WiFi
Lithium battery for control box
14.8V/5Ah, charging time is about 4 hours
Lithium battery for T head
14.8V/3Ah, charging time is about 3 hours
Duration working time
3 hours
Measurement time
about 20 minutes
Glass types
installed or un-installed energy saving glass without scattering
Sample thickness
Single pane: 50mm,IG:42mm(6+12A+6+12A+6)
Power supply
DC20V
Working conditions
-10°~40°, < 90%RH
