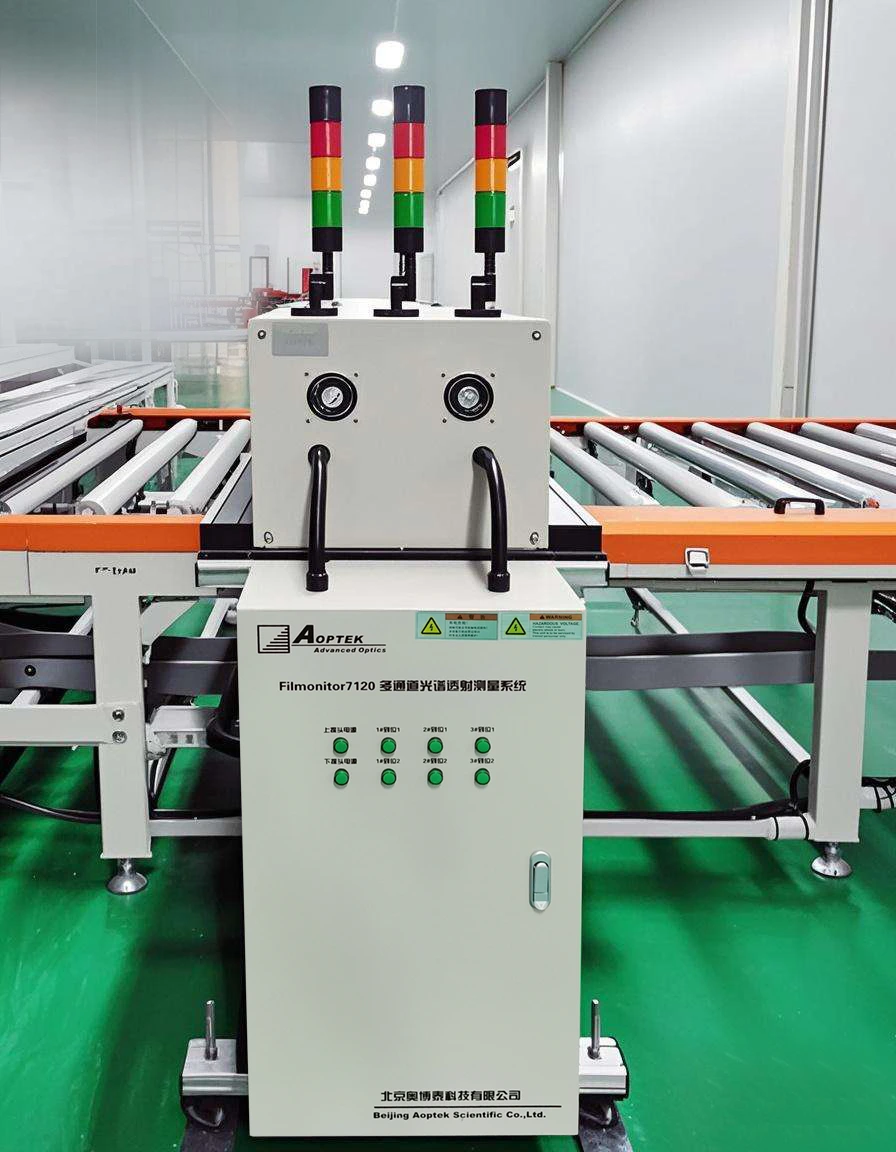

Filmonitor7120
Online Spectrum Transmittance System
Online Measure Spectrum Transmittance System for AR Coating Line of PV Glass. CSG and Almaden Purchased Project

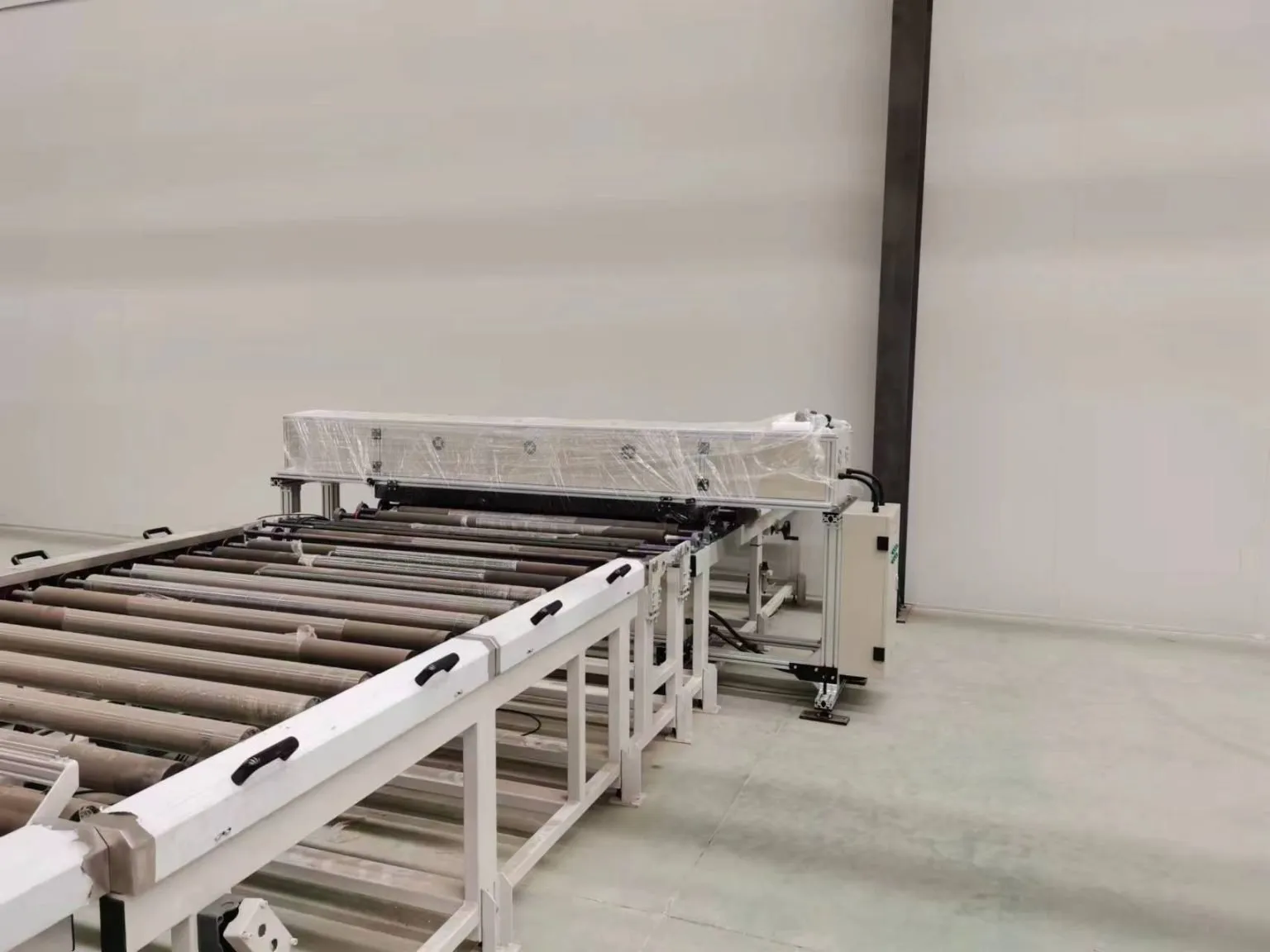

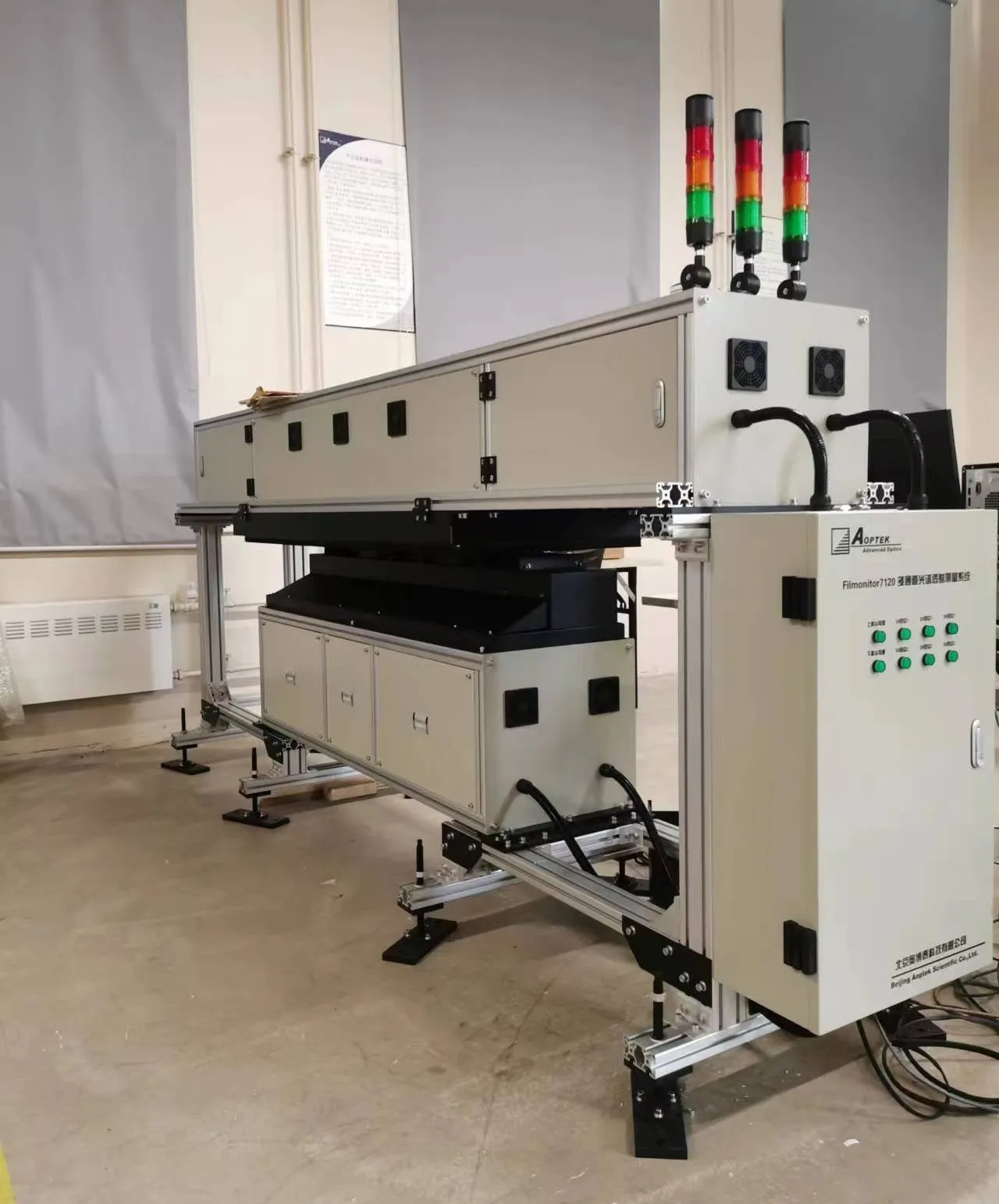

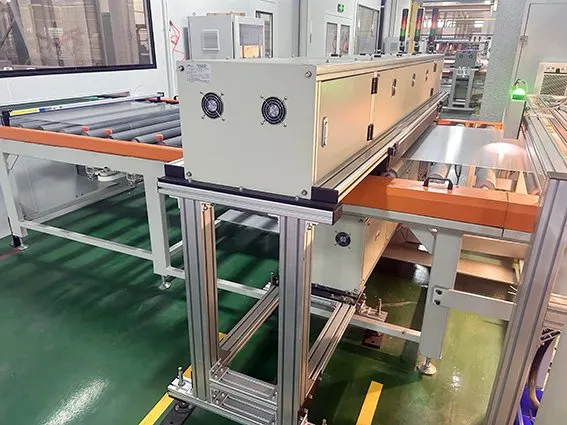

The Filmonitor7120 is an online measuring equipment installed on the solar photovoltaic glass coating production line to measure the spectrum transmittance of anti-reflection coated glass. This measurement system can online measure the spectrum transmittance of solar photovoltaic glass in real time, and calculate the effective transmittance TAM1.5, visible light transmittance Y, x, y, L *, a *, b * of PV coated glass. The measured data will be auto- matically stored in the database for users to query, compare, and analyse.
Measurable Objects
Patterned glass
Anti-reflection coated glass
Functions
Visible transmittance
Effective Transmittance TAM1.5, Y、x、y, L*、a*、b*
Features
Auto dynamic calibration
Compare spectrum curve before and after coating.
High stability
We provide customized services according to customers' needs.
The measured data will be automatically stored in the database for users to query, compare, and analyse.
Easy to replace and upgrade components
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 0° / d |
Wavelength range | 380~1100nm |
Glass width | Customized |
Glass edge distance | 50mm |
Meas. repeatability | ≤ 0.15% |
Consistency of each Channel | ≤ 0.15% |
Warm up time | 30 minutes |
Power supply | 220VAC,50Hz |
| Item | Parameters |
|---|---|
Integrating sphere size | Ø 100 |
Meas. speed | 700ms |
Glass length | >300mm |
T Resolution | 0.01% |
Meas. reproducibility | ≤ 0.15% |
Interface | RJ45 |
Power | 400W |
Working conditions | 0 °C~40°C ≤ 90%RH |
