Filmonitor6300
Spectrum T&R Online Measurement System
Online traversing measure spectrum transmittance and reflectance for PVD line.

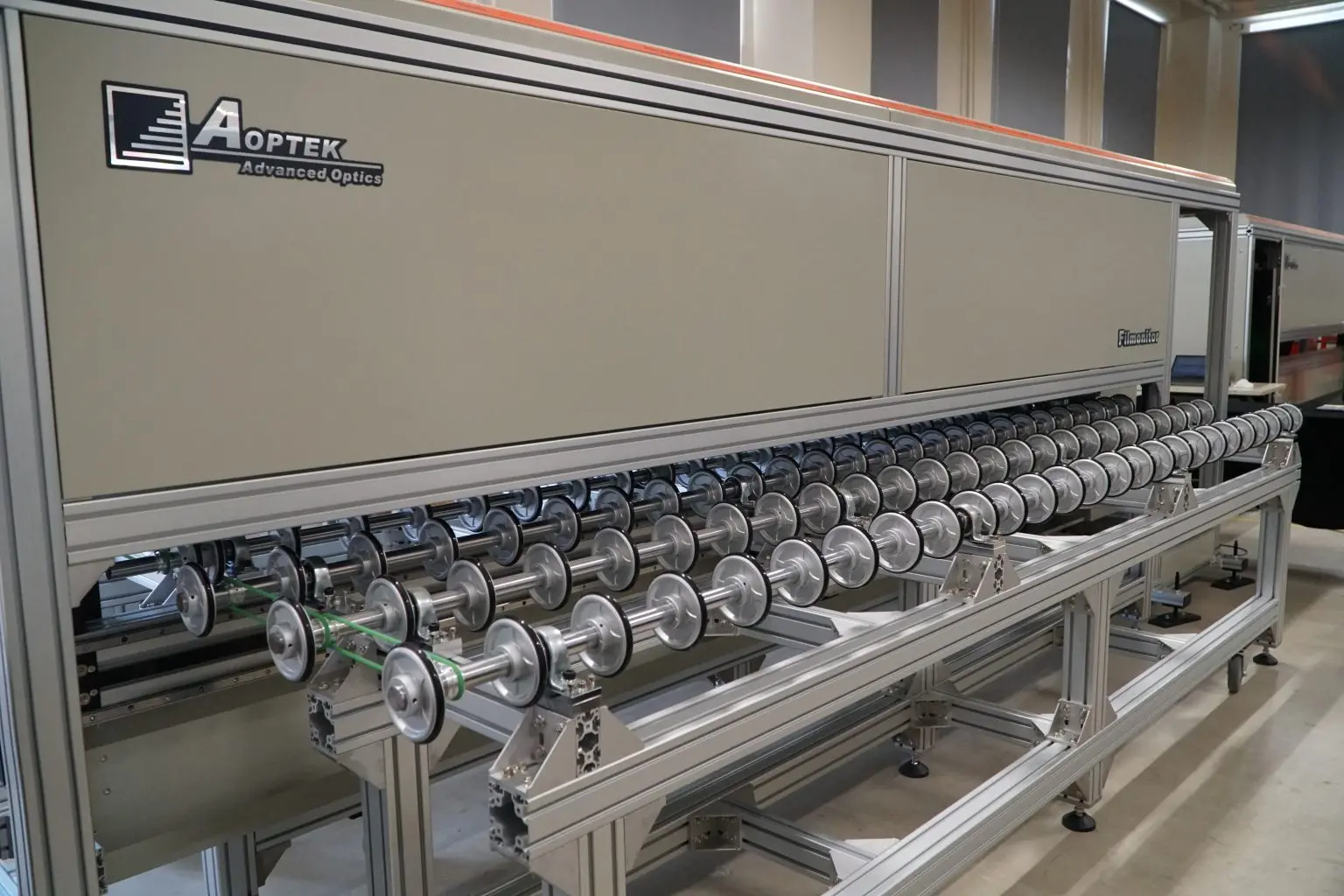

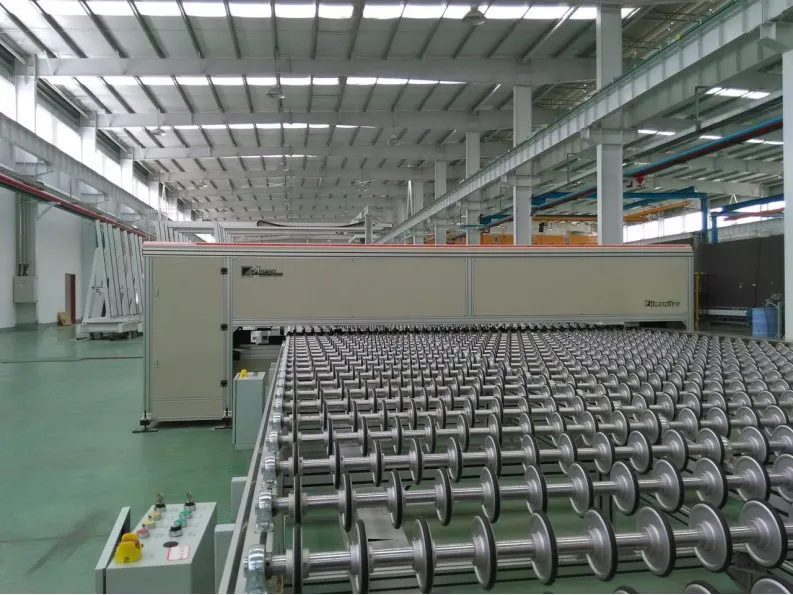

The Filmonitor6300 is installed at unloading table to measure transmittance, reflectance, and color difference of Low-E coated glass. As double and triple silver Low-E coatings are more complex, they are apt to appear color difference at other angles, such as 45° or 60°. So it is necessary to measure the spectrum reflectance at 45°or 60° for double or triple silver Low-E glass. We call this function is off-angle spectrum reflectance measurement, and this function is an option for Filmonitor6300.
Measurable Objects
Magnetron sputtering coating glass production line
Functions
Spectrum transmittance
Spectrum Reflectance ρ(λ).
Color Y, L, a*, b*
Sheet resistance
Features
Network connection, flexible configuration.
Auto dynamic calibration
Self-checking function, accident alarm and record
Independent software to facilitate upgrade
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 8° / 8° Transmittance(T) 8° / 8° Film Side Reflectance(Rf) 8° / 8° Glass Side Reflectance(Rg) 45°/45° or 60°/60° Rf (Optional) 45°/45° or 60°/60° Rg (Optional) Sheet resistance (Optional) |
Wavelength accuracy | < 0.3mm |
Repeatbility | L *, a *, b * < 0.1RMS |
Measuring speed | ≤ 1s for one point measurement Measure 24 points on 2.54m production line, measuring time less than 20s. Measure 33 points on 3.3m production line, measuring time less than 25s. |
| Item | Parameters |
|---|---|
Head mode | Traversing |
Light source | Halogen / LED |
Glass thickness | 2~19mm |
Wavelength range | 380~1000nm |
Wavelength interval | 1nm |
Wavelength repeatability | < 0.1mm |
Reproducibility | L *, a *, b * < 0.1RMS |
