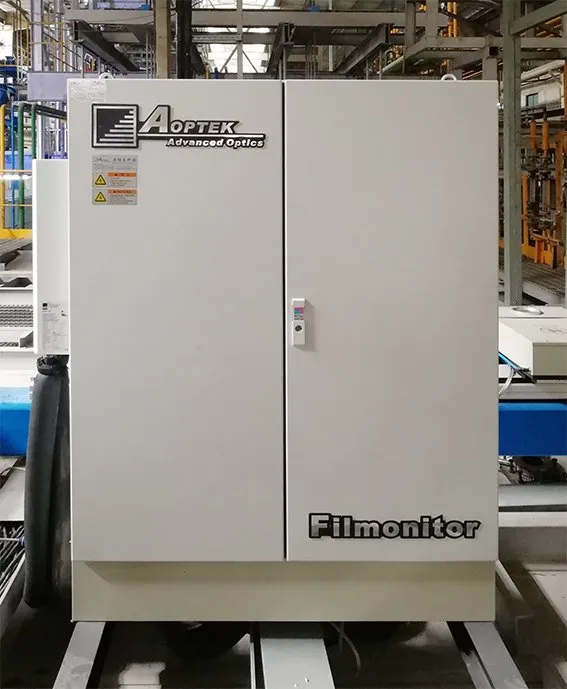

Filmonitor6230
Spectrum Reflectance MeasurementSystem at A0 Area
Measure the Spectrum Reflectance at A0 area (hot end) of CVD line.

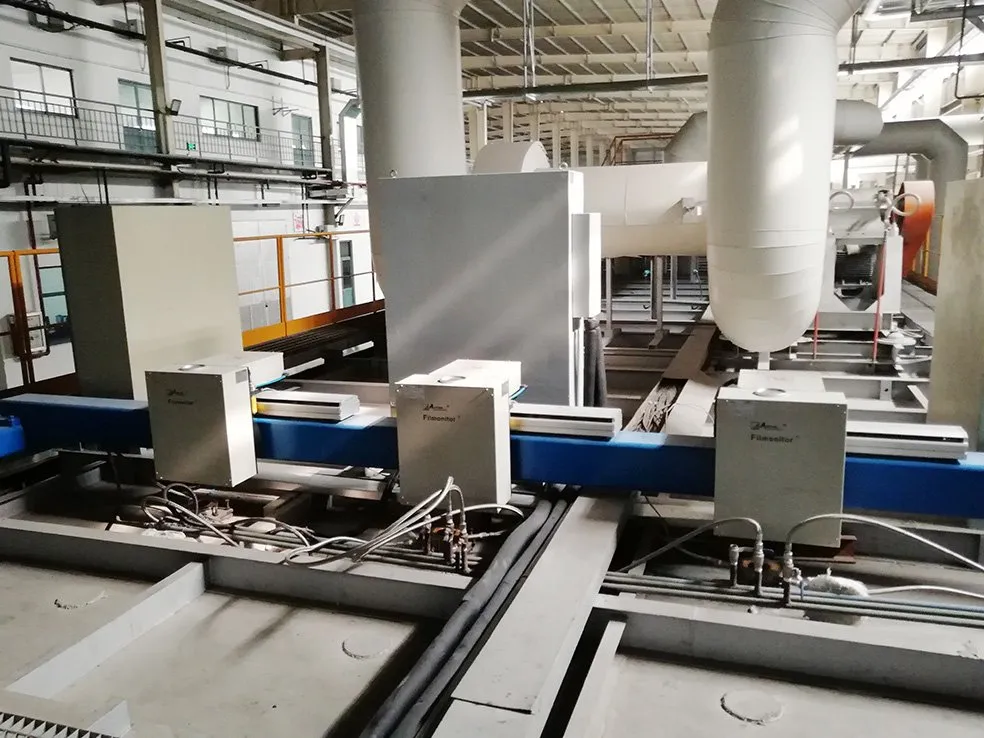

The Filmonitor6230 is used to measure the spectrum reflectance at A0 area (hot end) of CVD line, which is installed at A0 area (hot end) of float glass production line, where locates at the end of the tin bath. It can rapidly measure spectrum reflectance, and calculate parameters such as color, color difference. It is convenient for technicians to discover coating problems in advance and then to adjust coating process. Because it is installed at hot end, the installation can be done only on production line design period or production line stopped.
This instrument is suitable for measuring architectural glass.
Measurable Objects
Float Glass
Coated Glass
Suitable for Measuring Architectural Glass
Functions
Spectral Reflectance
Color Parameters Yxy, Color Difference L*, a*, b*
Features
Automatic Calibration
Adopt dynamic automatic calibration to ensure the stability and reliability of measurement data
Self-Check System
The system has a self-check function, with hardware fault alarm and fault recording
Resistant to Ambient Light Interference
Resistant to ambient light interference
Monitor Historical Change
Alarm thresholds can be set to monitor historical trends
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 8°/ 8° |
Glass thickness | 2~19mm |
Light source | Halogen |
Glass temperature | ~ 600℃ |
Wavelength range | 380~1000nm |
| Item | Parameters |
|---|---|
Wavelength interval | 1nm |
Wavelength accuracy | < 0.3nm |
Wavelength repeatability | < 0.1nm |
Head mode | Fixed |
Measuring speed | ≤2s for a measurement of one point |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
