Filmonitor6020
Multi-Channel Visible Light TransmittanceOnline Measurement System
Measure visible light transmittance at cold end of CVD line.

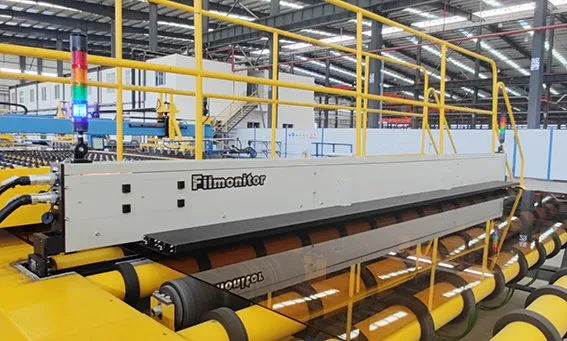

The Filmonitor6020 is used to online measure visible light transmittance for coating production line in real time, which is installed at the position after glass cutting of glass line. It can measure visible light transmittance of multi-points, and then monitor glass quality.
The Filmonitor6020 is consist of measuring unit, control unit, control computer, etc. According to the width of the glass, it is equipped with 5 to 16 measuring heads. Compared with the spectrum transmittance system, its price is lower, but measuring speed is faster.
This instrument is suitable for measuring architectural glass.
Measurable Objects
Float Glass
Coated glass
Suitable for Measuring Architectural Glass
Functions
Visible Light Transmittance
Features
Essential Testing Equipment
Essential testing equipment for float glass with solar coatings.
Widely Used
The most widely installed practical testing equipment
Fast Measurement speed and Low Price
Compared with the spectrum transmittance system, its price is lower, but measuring speed is faster.
Monitor Glass Quality in Real Time
Measure the visible light transmittance of multi-points and monitor glass quality.
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 8°/ 8° |
Illuminant | CIE standard illuminant A |
Head mode | Fixed |
Light source | Halogen |
Glass thickness | 2~19mm |
Measuring speed | < 50ms / point |
| Item | Parameters |
|---|---|
Channels quantity | 5~16 heads |
Observer | CIE1931 V (λ) |
Measuring interval | Settable |
Consistency of each channels | ≤ 0.3% |
Repeatability | ≤ 0.3% |
Accuracy | 1% |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
