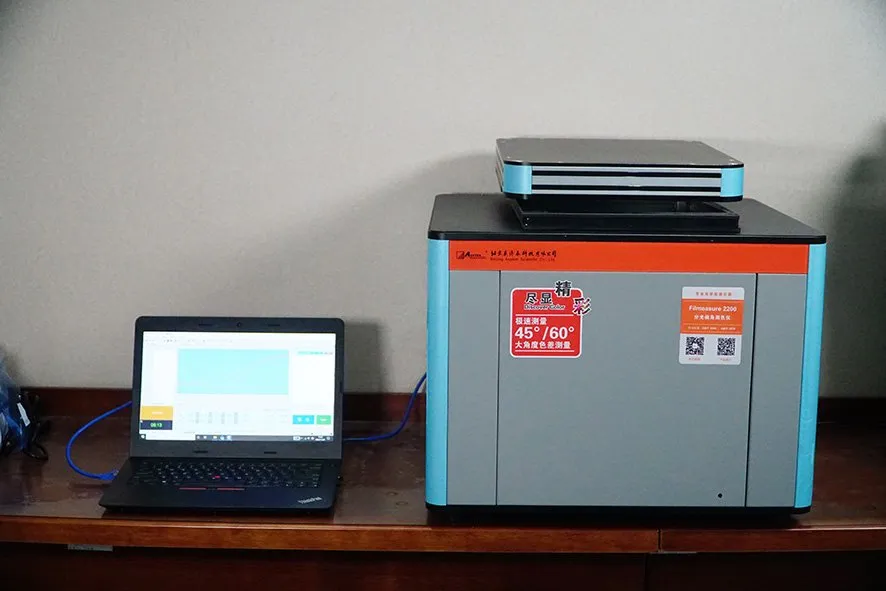

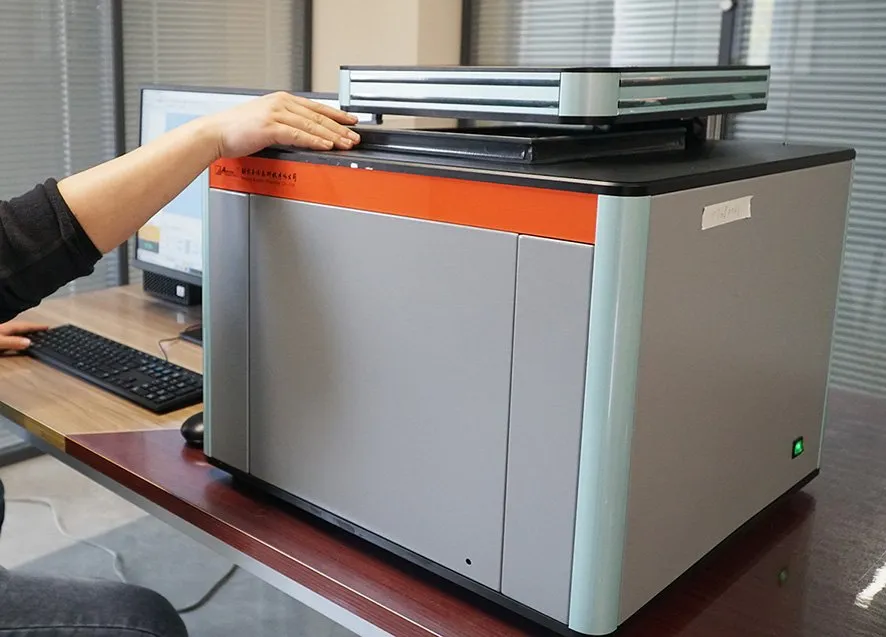

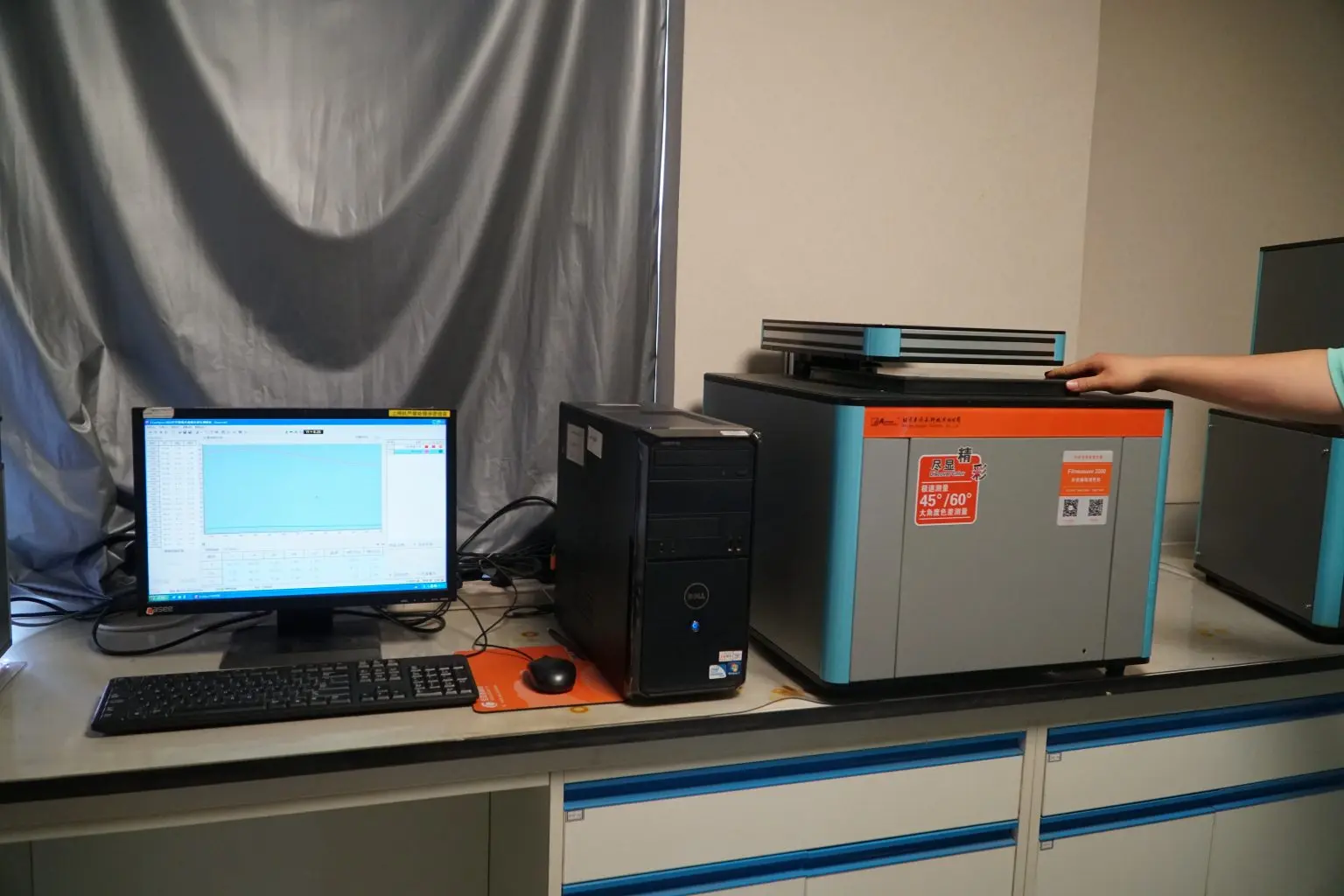

Filmeasure2200
Off-angle Spectrum Reflectance Instrument
Indispensable instrument for double and triple silver Low-E glass. Meet GB/T18915.1-2002 solar control coated glass standard Meet GB/T18915.2-2002 Low-E glass standard
The Filmeasure2200 is used to measure the spectrum reflectance of IG at the special angle of 45° or 60° , which is necessary for the double silver or triple silver Low-E glass, because the Low-E glass often occur color difference at these off-angles.
This instrument is suitable for measuring architectural glass.
Measurable Objects
Flat Glass
Coated Glass: Especially double silver, triple silver Low-E glass
Film And Other Materials
Suitable for Measuring Architectural Glass
Functions
Spectrum Reflectance ρ(λ).
Color Parameters Yxy, L*a*b*, ΔE.
Features
Fast and Automatic Measurement
Fast and automatic measurement
Large Angle Measurement
Measurement at 45 ° or 60 ° viewing angle is available
Data Testing
It is suitable for testing a large amount of data in the factory.
Display Special Wavelengths
It can display special wavelengths. Users can set the wavelength intervals to 1nm, 5nm, or 10nm to display spectral data.
Automatically Generate Reports
The test data can be printed out in the form of a report
No Damage to The Glass
There is no damage to the glass. It can measure large-sized single or insulating Low-E glass without cutting the glass into small samples.
Independent Intellectual Property Rights
Independent intellectual property rights
Parameters
| Item | Parameters |
|---|---|
Geometric conditions | 45°/45° or 60°/60° |
Light source | Halogen |
Interface | RJ45 |
Measuring table size | 500*500mm |

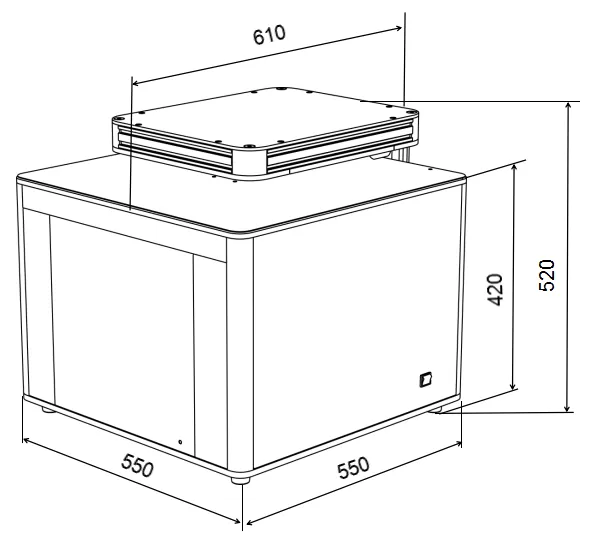

Dimension | 610*550*520mm |
| Item | Parameters |
|---|---|
Wavelength range | 380~1000nm |
Reflectance range | 0~100% |
Wavelength interval | 1nm |
Wavelength resolution(FWHM) | 3~5nm |
Power supply | 100~240VAC, 50/60Hz |
Remark: Aoptek reserves the right to modify the information, the actual instrument & manual be as final.
